TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
539
Cabling

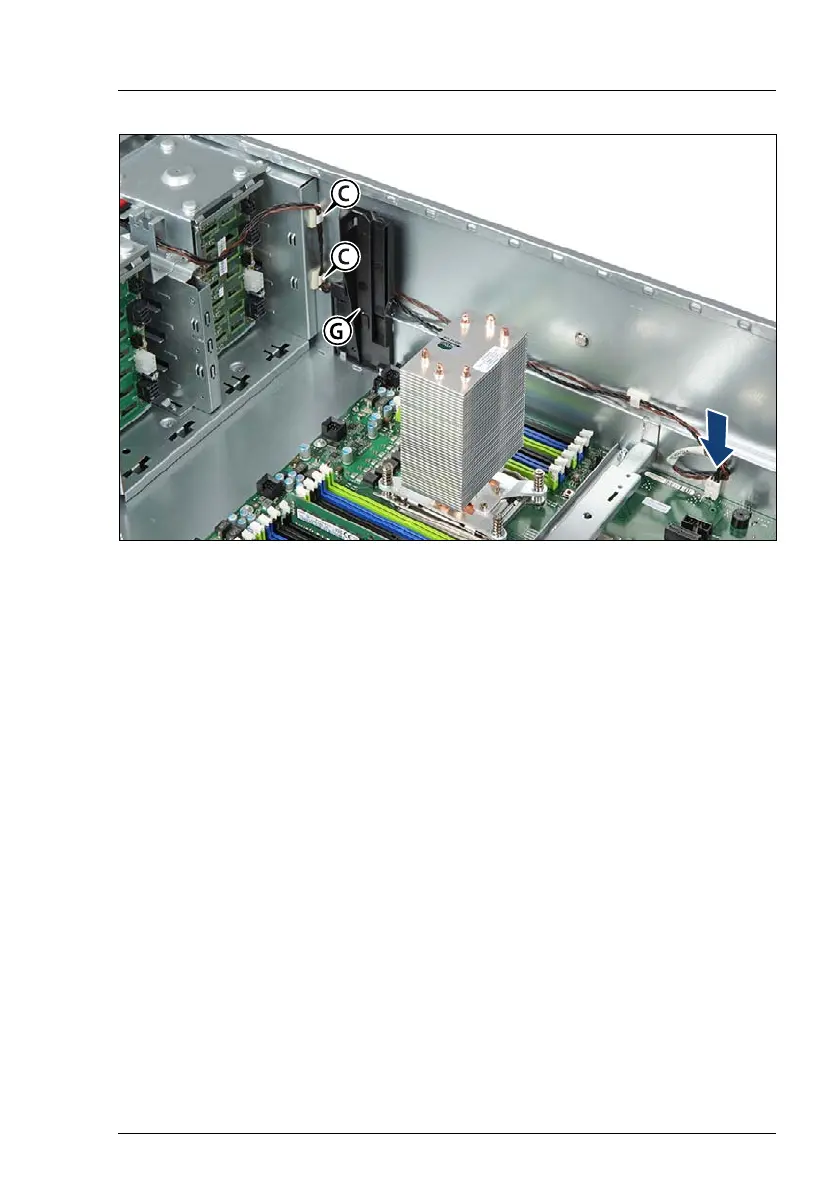

Figure 414: Connecting the intrusion switch cable
Ê
Run the intrusion switch cable through the cable clamps (C) on the HDD
cage and the cable guide (G).
Ê
Connect the intrusion switch cable to the system board.
16.3.4 Concluding steps
Ê
"Installing the system fan holder" on page 94
Ê
"Installing the system air duct" on page 92
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
