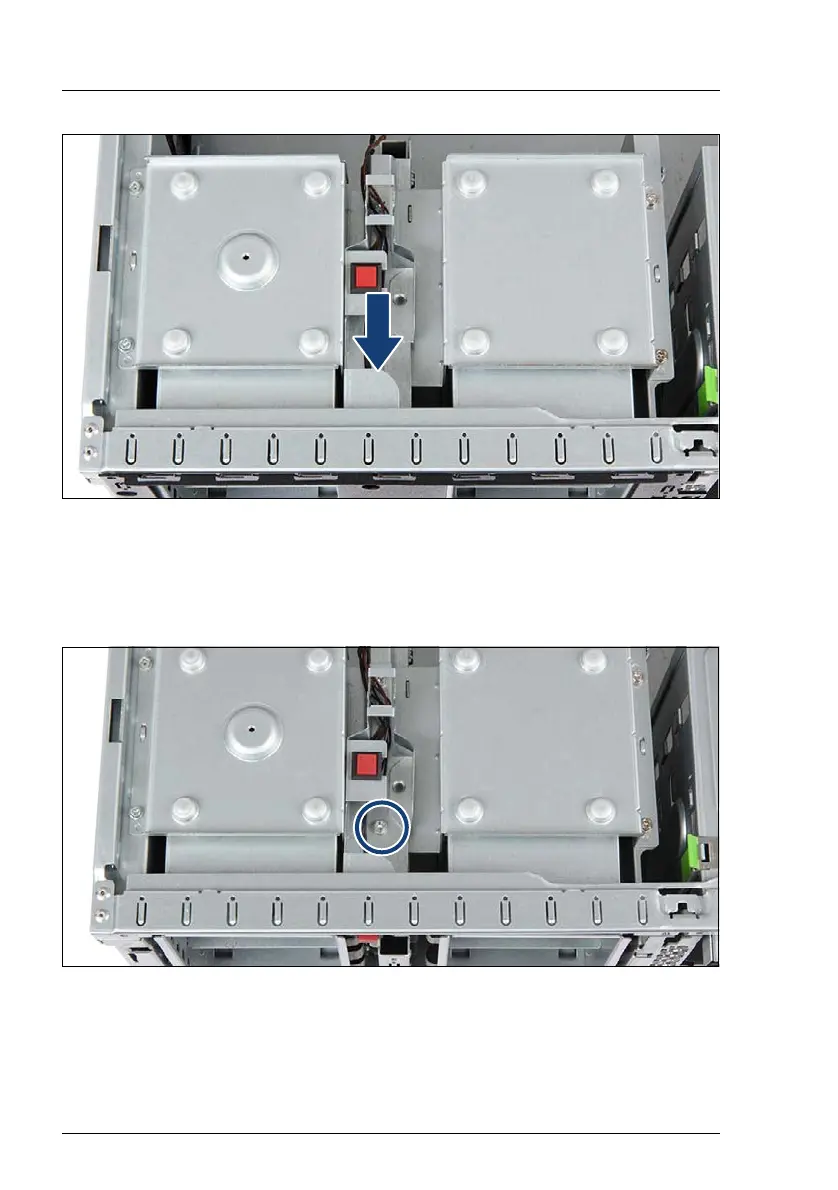

Figure 412: Installing the intrusion switch cable (A)
Ê
Place the new intrusion switch holder on the HDD bay top cover as shown.
Ê
Slide the intrusion switch holder under the front chassis rim as far as it will
go.
Figure 413: Installing the intrusion switch cable (B)
Ê
Secure the intrusion switch holder on the HDD bay top cover with one screw.
To Next Page
