Hard disk drive (HDD) / solid state drive (SSD)
7.3.9.3 Installing a 3.5-inch HDD module

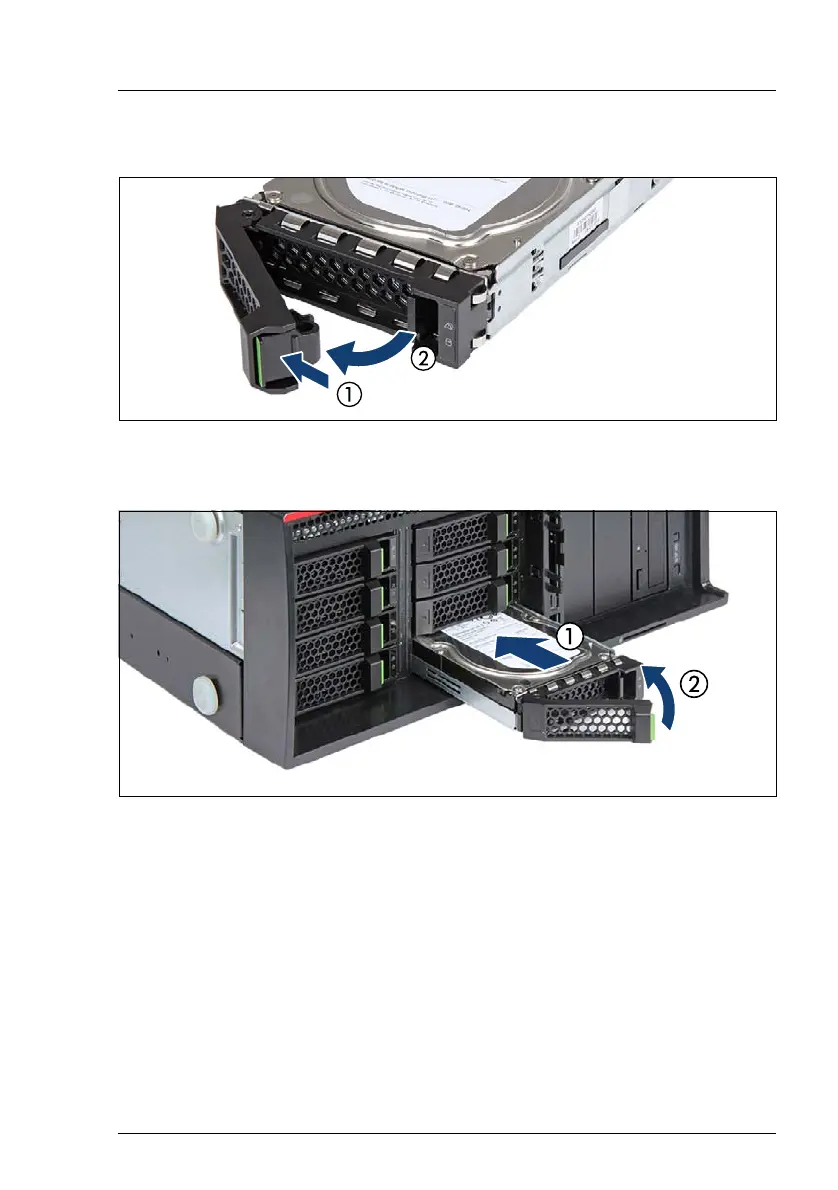

Figure 133: Opening the 3.5-inch HDD module locking lever
Ê
Pinch the green locking clip (1) and open the locking lever (2).
Figure 134: Installing the 3.5-inch HDD module
Ê
Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê
Close the locking lever to lock the HDD in place (2).
7.3.9.4 Concluding steps
Ê
When working on a tower server, close the HDD bay cover as described in
section "Installing accessible drive and HDD bay covers" on page 83.
Ê
"Performing a RAID array rebuild" on page 137
