17.1 Mechanical overview
17.1.1 Server front
2.5-inch HDD/SSD model

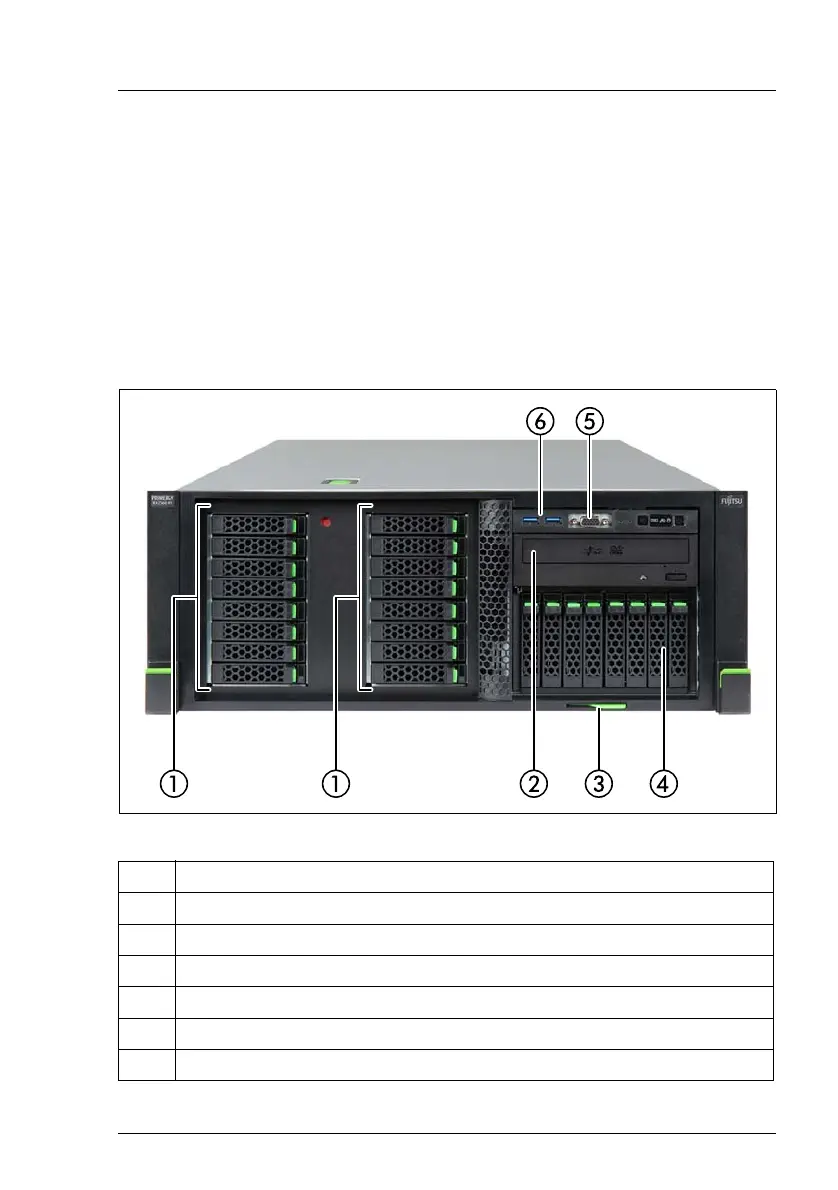

Figure 418: Server front 2.5-inch HDD/SSD model - example RX2560 M2
Pos. Component
1 2.5-inch HDDs / SSDs / dummy modules
2 Optical disk drive / 5.25-inch dummy module
3ID card
4 8x 2.5-inch HDD extension box / 8x 2.5-inch PCIe SSD extension box
5 Front panel module: Front VGA connector (optional)
6 Front panel module: 2x USB 3.0 connectors
