Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
12.2.3 Installing mounting brackets to RDX and DAT72
backup drives
This section is not applied for Japanese market.
Backup drive mounting brackets are contained in mounting kit S26361-F3753-
E1 (to be ordered separately with the backup drive).
I
No new mounting brackets are available when replacing a backup drive
during service.
Ê
If applicable, remove existing mounting brackets from the backup drive.

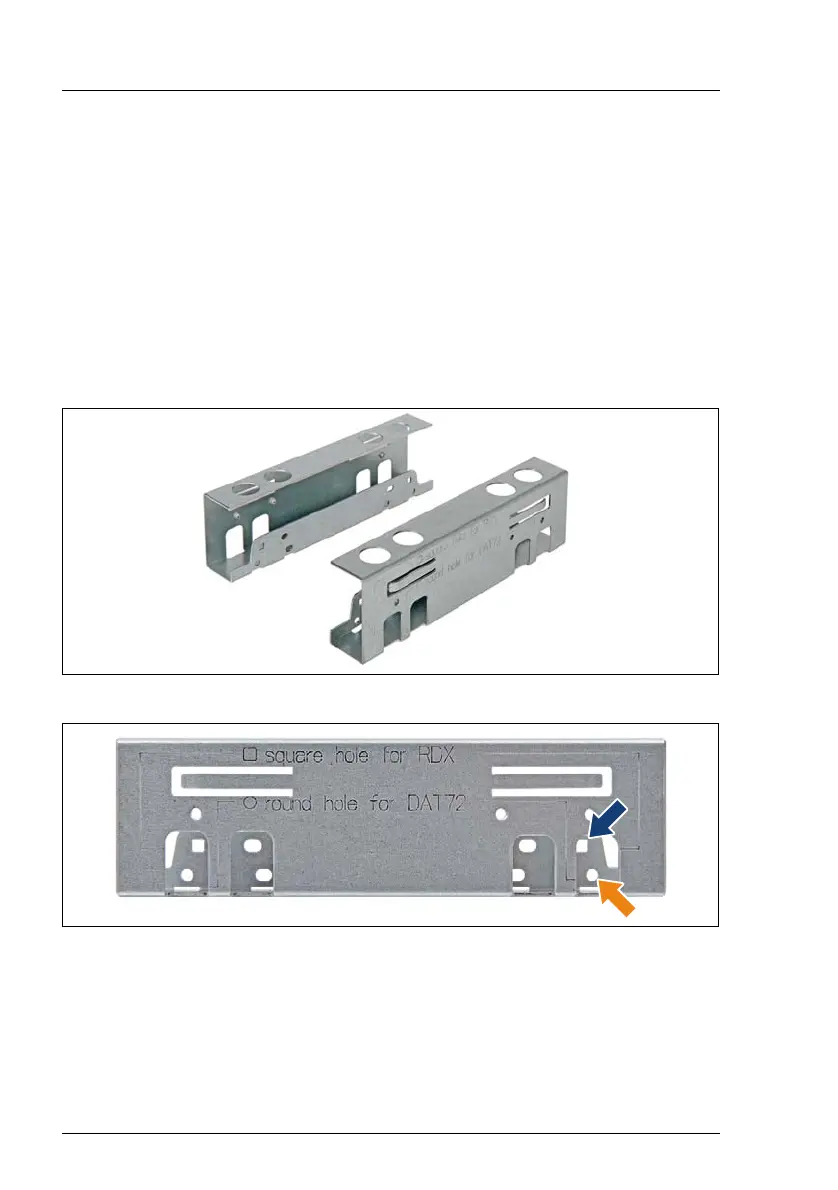

Figure 287: Backup drive mounting brackets
Figure 288: Screw holes on backup drive mounting brackets
Ê
Note the screw hole description stamped onto the mounting bracket for the
right side holes:
Ê
Use the square screw hole for RDX backup drives (see blue arrow).
Ê
Use the round screw hole for DAT72 backup drives (see orange arrow).
