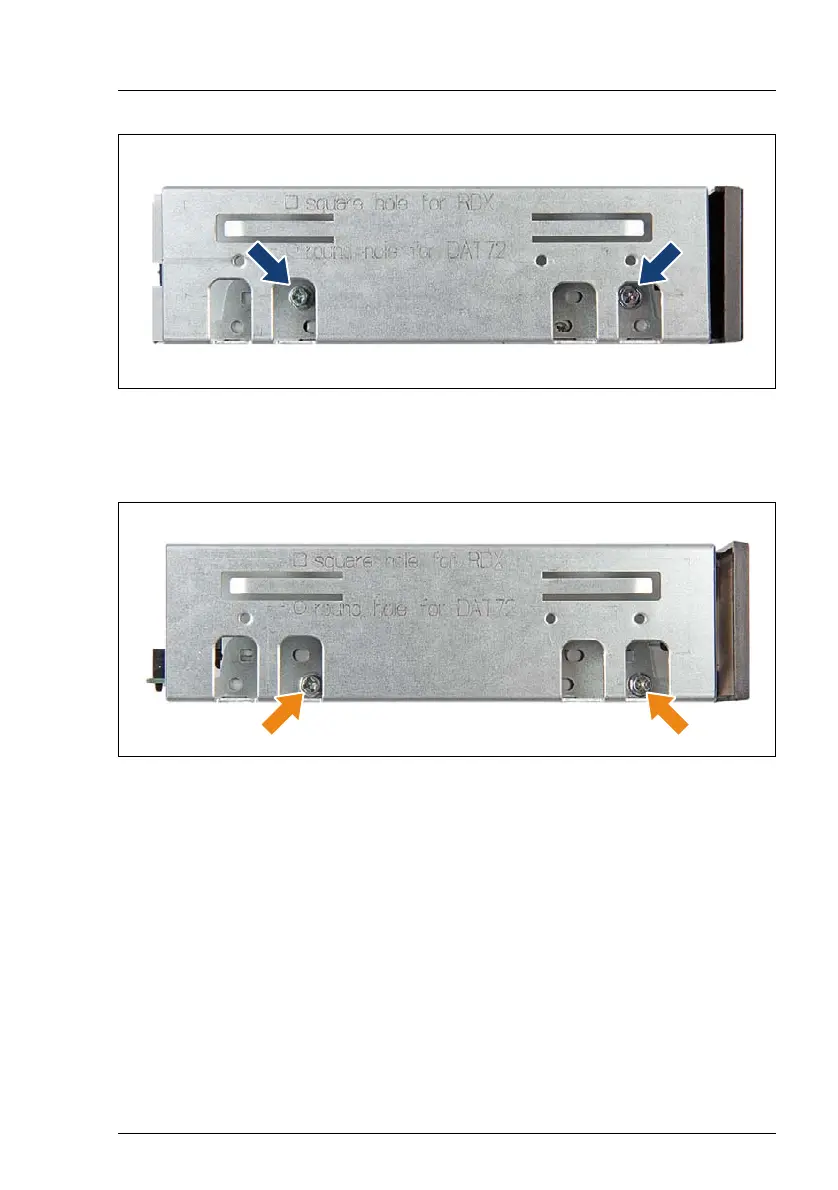

Figure 289: Securing mounting brackets to an RDX backup drive
Ê
Secure the backup drive mounting brackets to the RDX backup drive with
two screws per bracket as shown.
Figure 290: Securing mounting brackets to a DAT72 backup drive
Ê
Secure the backup drive mounting brackets to the DAT72 backup drive with
two screws per bracket as shown.
