TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 169
Hard disk drive (HDD) / solid state drive (SSD)
7.2.8 Mixed configuration of 2.5-inch HDD/SSD modules
and 3.5-inch HDD modules (three backplanes)
Mounting order

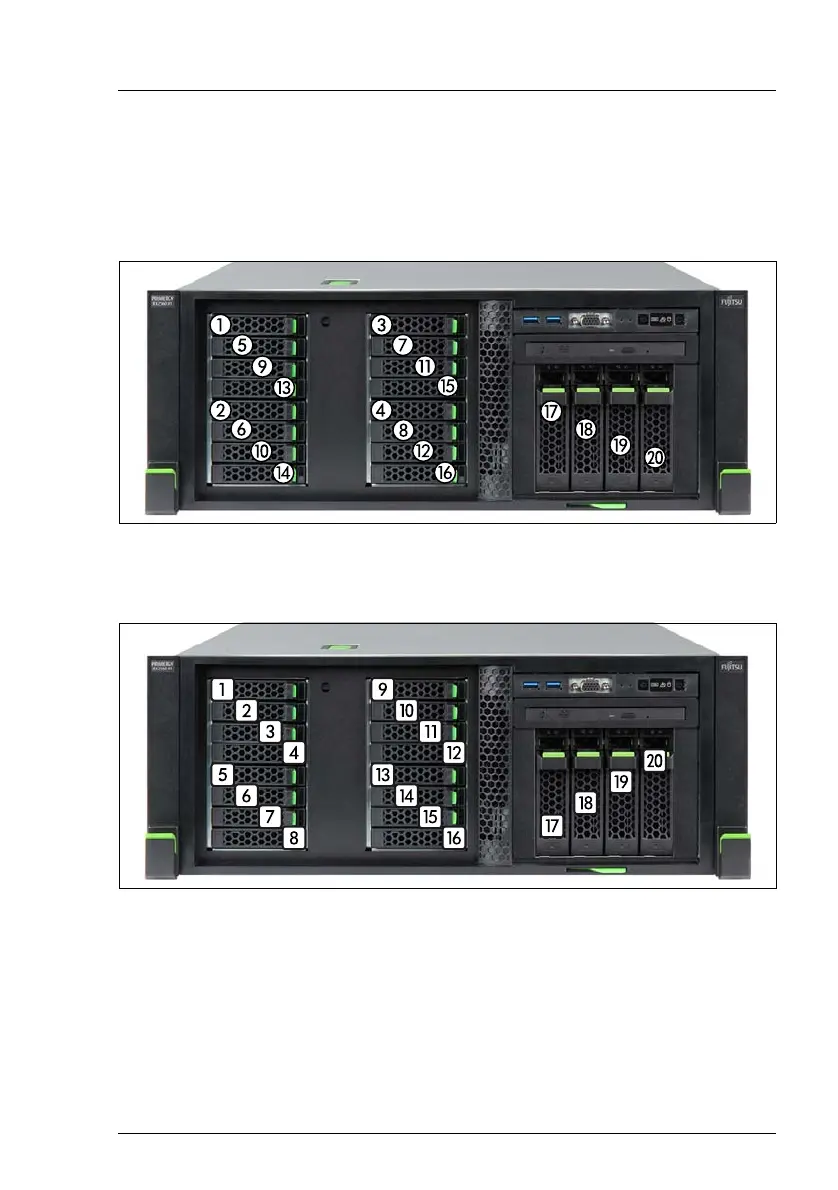

Figure 83: Mounting order for up to 16x 2.5-inch HDDs/ SSDs and up to 4x3.5-inch HDDs
HDD/SSD naming scheme
Figure 84: Naming scheme for up to 16x 2.5-inch HDDs/ SSDs and up to 4x3.5-inch HDDs
