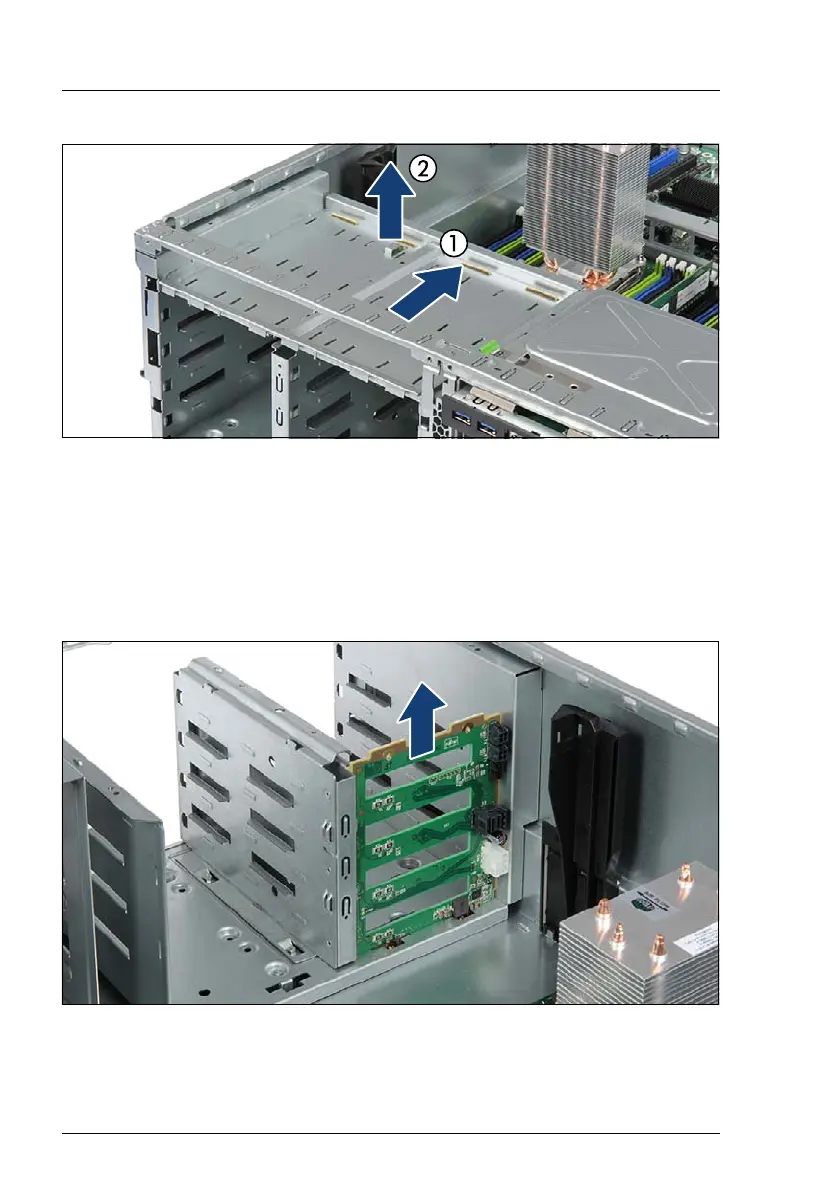

Figure 138: Removing the 3.5-inch HDD bay top cover (C)
Ê
Carefully fold up the 3.5-inch HDD bay top cover to disengage it from the
SAS backplane below (1).
Ê
Remove the 3.5-inch HDD bay top cover from the chassis (2).
7.3.12.3 Removing a 3.5-inch HDD SAS backplane
Figure 139: Removing the 3.5-inch HDD SAS backplane
Ê
Pull up the SAS backplane and remove it from the HDD bay in a vertical
motion.
