System board and components
14.3.3.3 Installing the new UFM

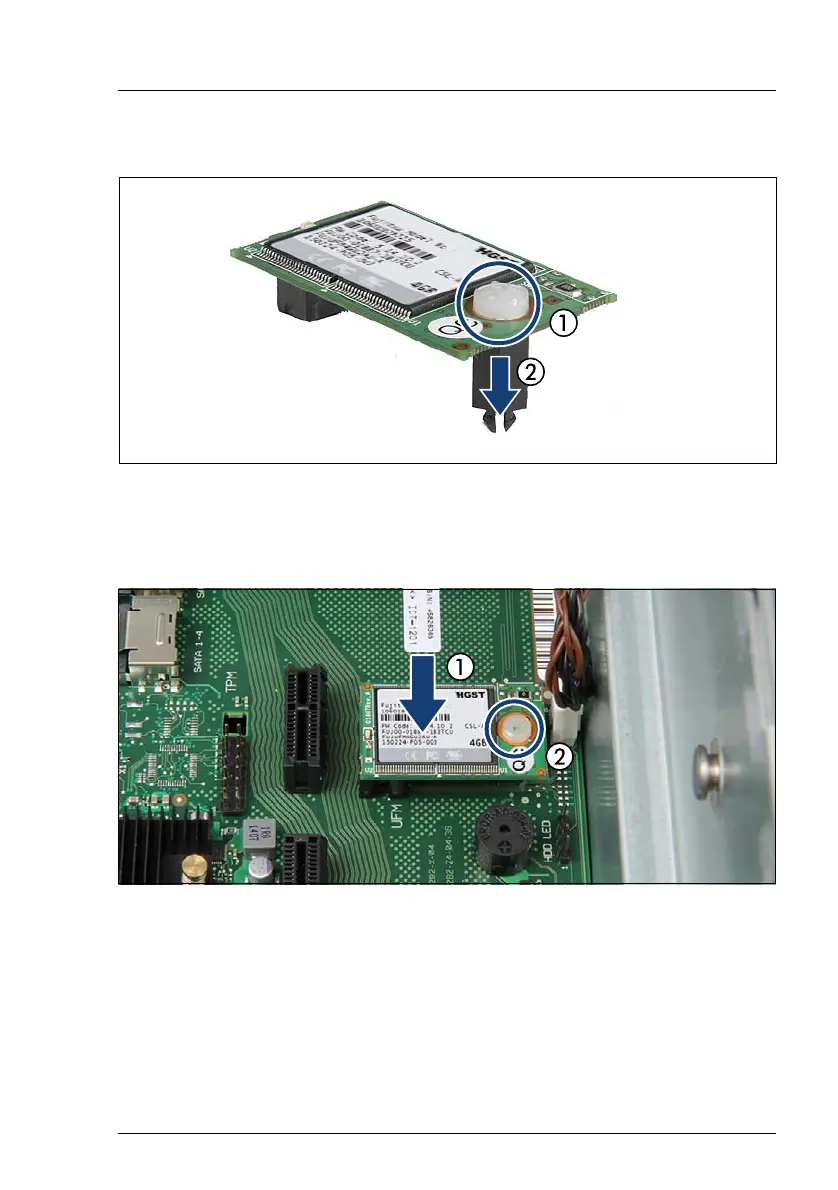

Figure 345: Removing the UFM spacer
Ê Remove the nylon screw from the UFM (1).
Ê Remove the UFM spacer (2).
Figure 346: Installing the UFM
Ê Connect the UFM to the system board and the remaining UFM spacer (1).
Ê Fasten the UFM to the UFM spacer with the nylon screw (2).
