72
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Basic hardware procedures
Storing the accessible drive bay cover

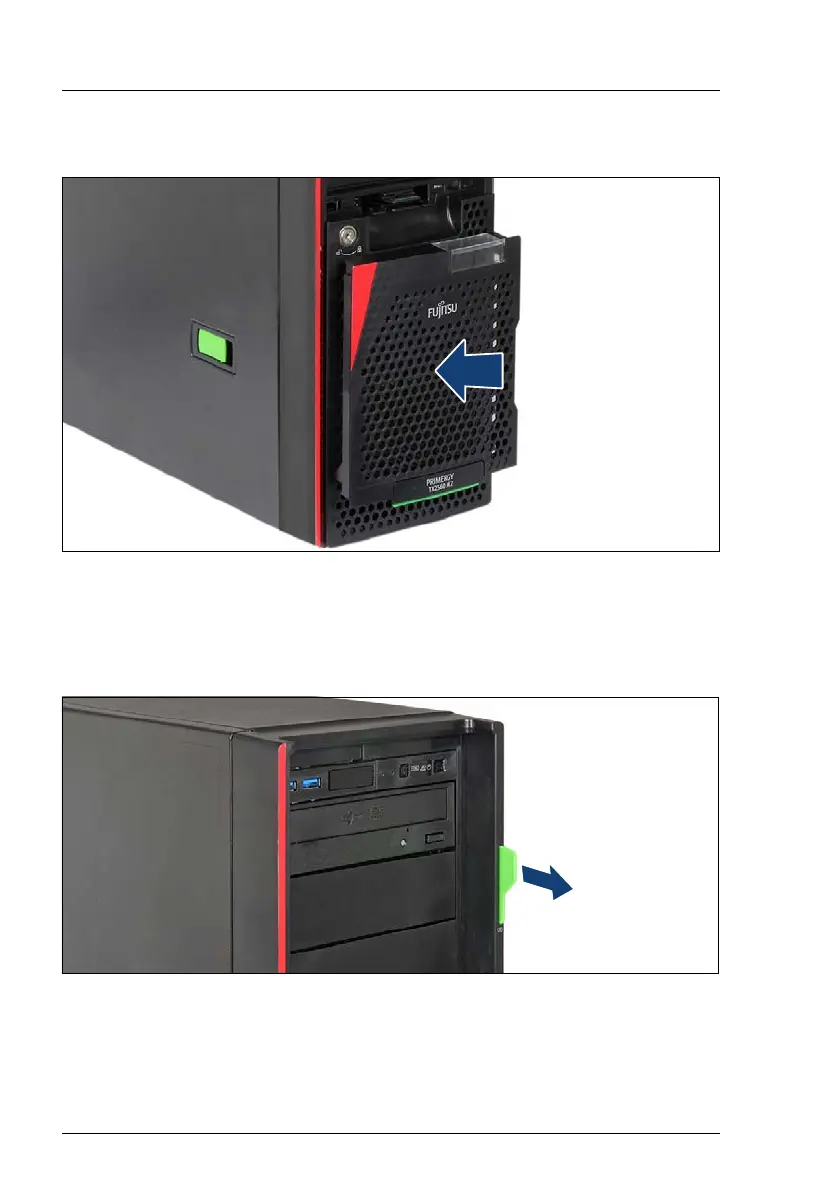

Figure 18: Storing the accessible drive bay cover
Ê
Place the accessible drive bay cover on the HDD bay cover as shown.
4.4.2.4 Removing the ID card
Figure 19: Removing the ID card (tower server)
Ê
Remove the ID card from the server.
I
It may be necessary to pull out on the ID card rather firmly. However,
do not apply excessive force.
