Hard disk drive (HDD) / solid state drive (SSD)
7.5.2.3 Installing the new PCIe SSD backplane

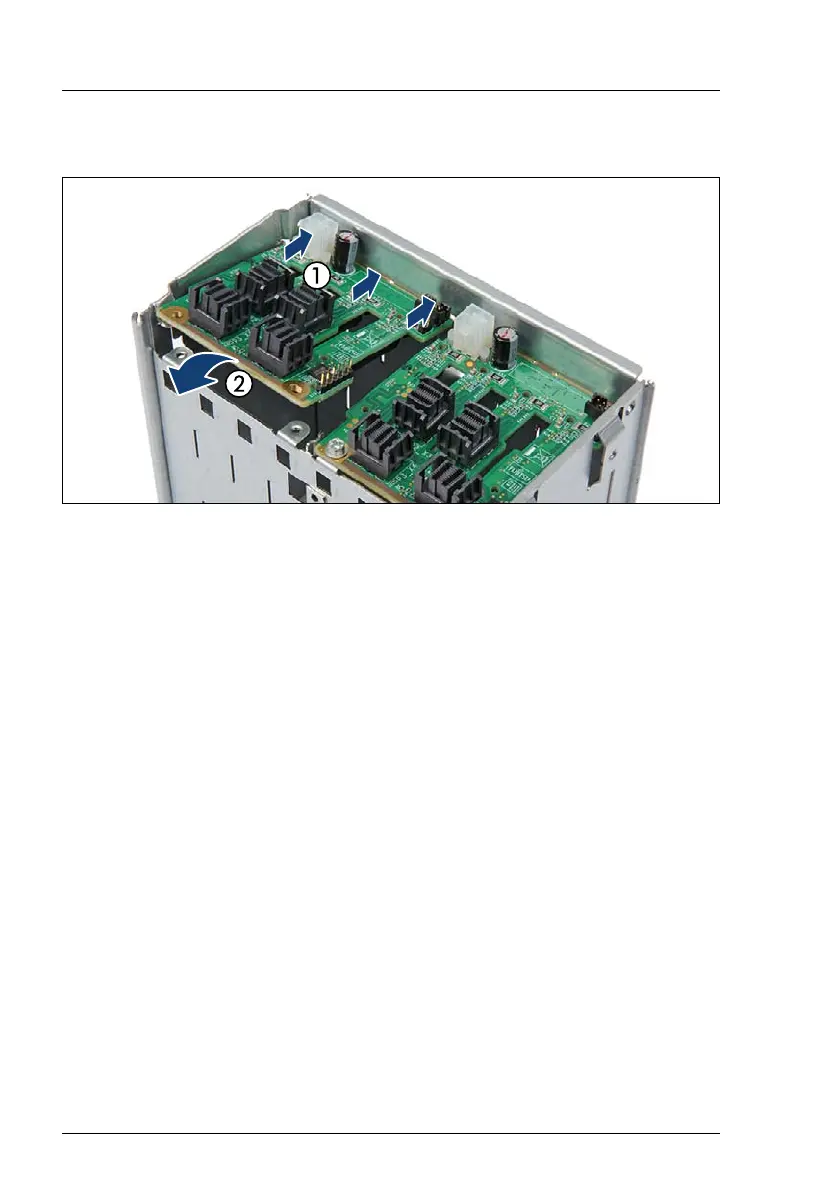

Figure 177: Installing the PCIe SSD backplane
Ê At a slight angle, fit the PCIe SSD backplane into the three recesses in the
PCIe SSD extension box (1).
Ê Fold down the PCIe SSD backplane (2).
Ê Fasten the PCIe SSD backplane with two screws (see figure 175).
Ê Install the 8x 2.5-inch PCIe SSD extension box as described in section
"Installing the 8x 2.5-inch HDD extension box" on page 238.
7.5.2.4 Concluding steps
Ê
"Installing the system fan holder" on page 94
Ê "Installing the system air duct" on page 92
Ê "Reassembling" on page 74
Ê Reinstall all 2.5-inch PCIe SSDs SFF into their original slots in the PCIe SSD
extension box as described in section "Installing 2.5-inch HDD/SSD
modules" on page 173.
Ê "Connecting the power cord" on page 87
Ê "Switching on the server" on page 90
