Fujitsu PRIMERGY TX2560 M2

TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 263
Hard disk drive (HDD) / solid state drive (SSD)

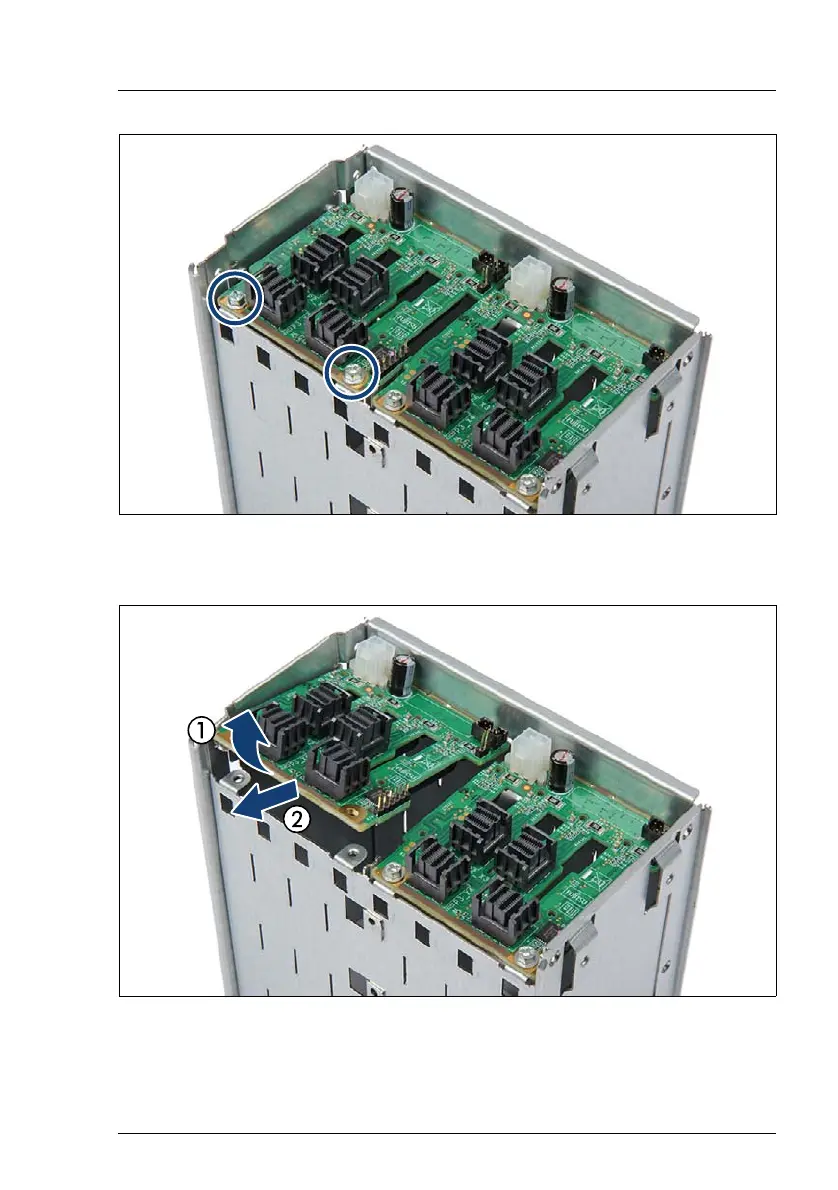

Figure 175: Removing the PCIe SSD backplane (A)
Ê Remove the two screws (see circles).
Figure 176: Removing the PCIe SSD backplane (B)
Ê Fold up the PCIe SSD backplane (1) and at a slight angle, remove it from
the recesses in the PCIe SSD extension box (2).
