Fujitsu PRIMERGY TX2560 M2

216 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.3.8 Configuration with non-hot-plug HDDs/SSDs
Mounting order

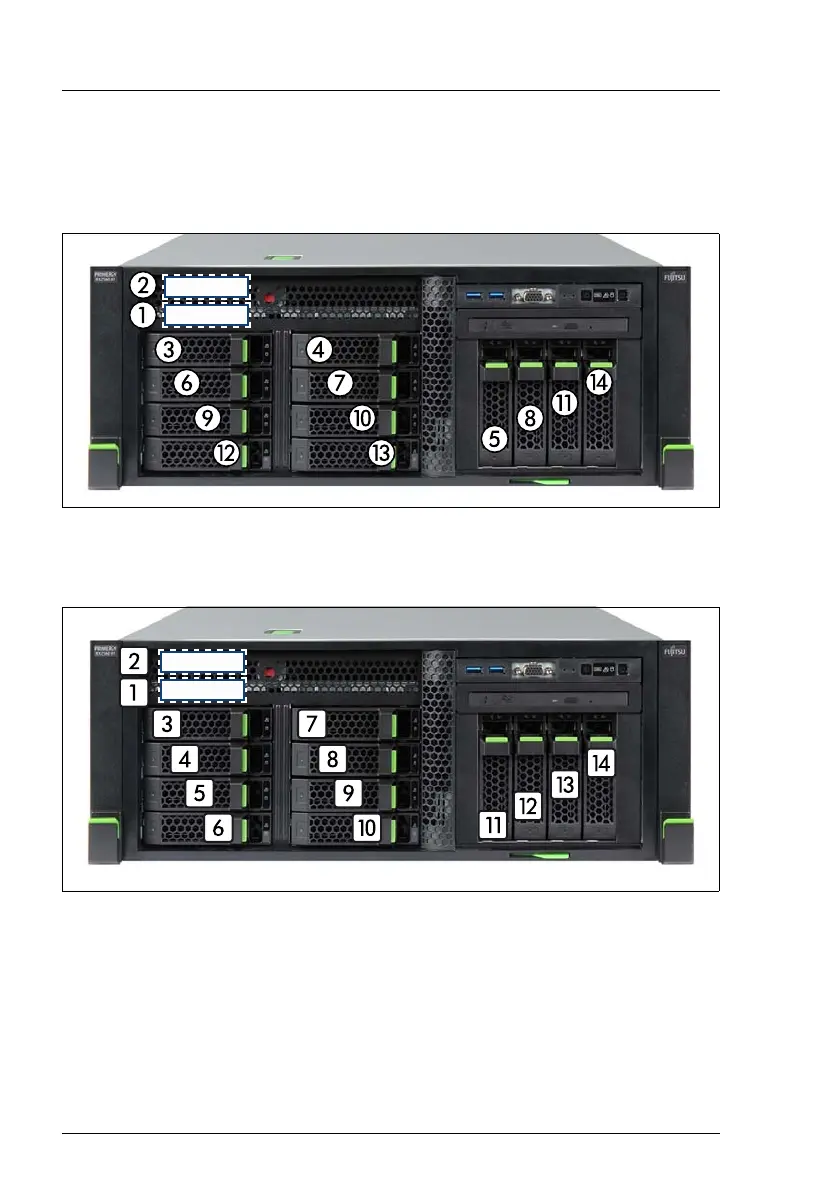

Figure 130: Mounting order for non-hot-plug HDDs/SSDs and up to 12x 3.5-inch HDDs
HDD naming scheme
Figure 131: Naming scheme for non-hot-plug HDDs/SSDs and up to 12x 3.5-inch HDDs
HDD/SSD 2
HDD/SSD 1
HDD/SSD 2
HDD/SSD 1
