TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
107
Basic hardware procedures
4.11.4.2 Installing accessible drive covers

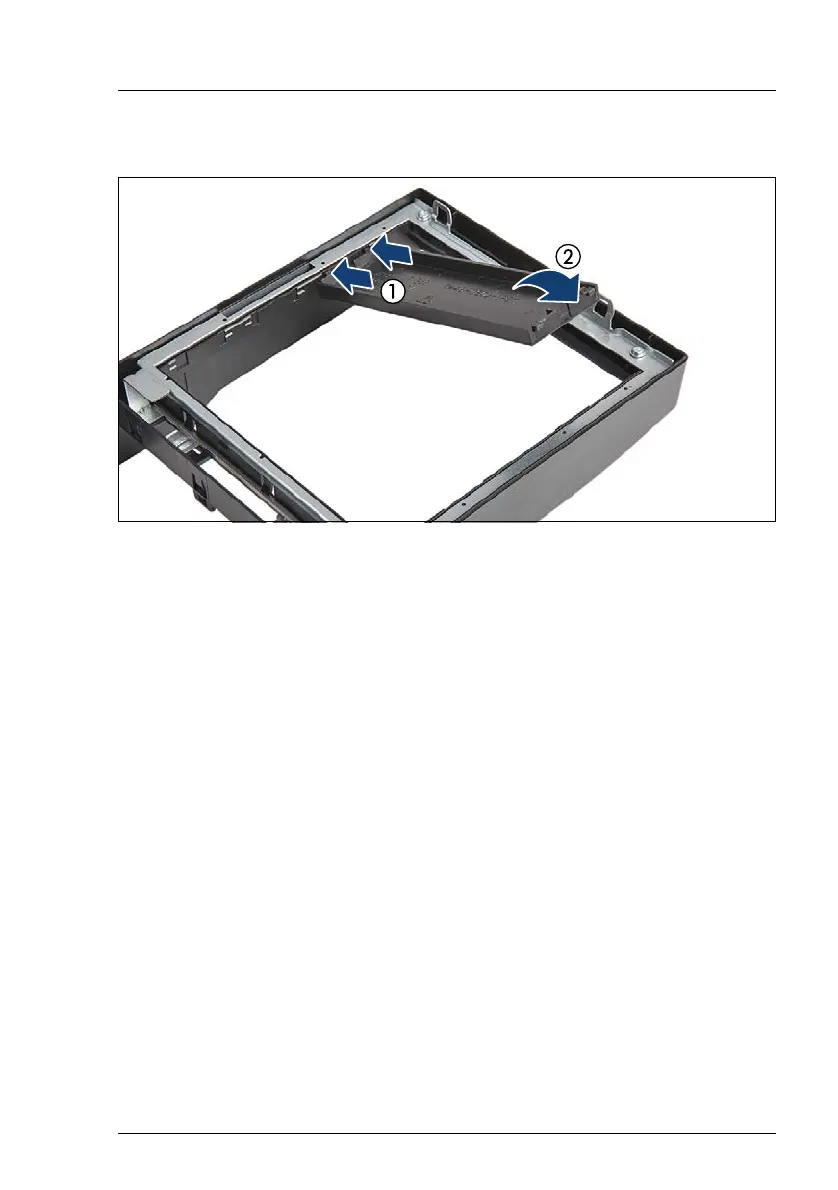

Figure 58: Installing accessible drive covers
I
Installing accessible drive covers is illustrated by the example of the
tower server. In case of the rack front cover, the procedure is identical.
Ê
Ensure that an accessible drive filler cover has been installed in every empty
drive bay.
Ê
Turn the front cover face down.
Ê
Join the two lugs on one edge of the accessible drive cover with the right
inner edge of the front cover (1).
Ê
Fold down the accessible drive cover until it snaps in place (2).
