9.4.4.2 Removing the defective FBU
Ê
Remove the FBU with the FBU holder as described in section "Removing an
FBU" on page 325.
9.4.4.3 Removing the FBU from the FBU holder

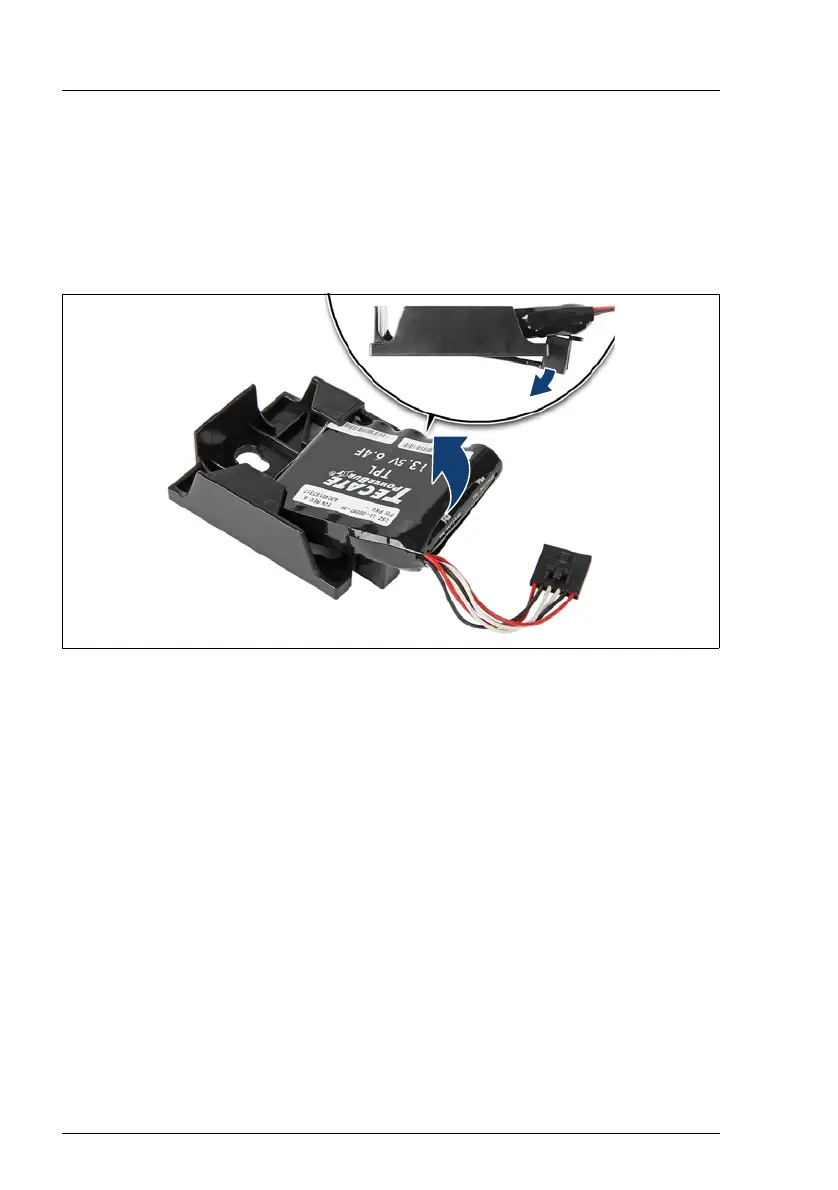

Figure 234: Removing the FBU from the FBU holder
Ê
At a slight angle, slide the FBU from under the retaining brackets of the FBU
holder and remove it.
9.4.4.4 Installing a new FBU module
Ê
Install the FBU into the FBU holder as described in section "Preparing the
FBU" on page 322.
Ê
Install the FBU with the FBU holder as described in section "Installing the
FBU" on page 323.
Ê
Connect the FBU adapter cable to the FBU cable.
9.4.4.5 Concluding steps
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
