Fujitsu PRIMERGY TX2560 M2

214 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.3.7 Mixed configuration of 3.5-inch HDD modules and
2.5-inch PCIe SSDs SFF (four backplanes)
Mounting order

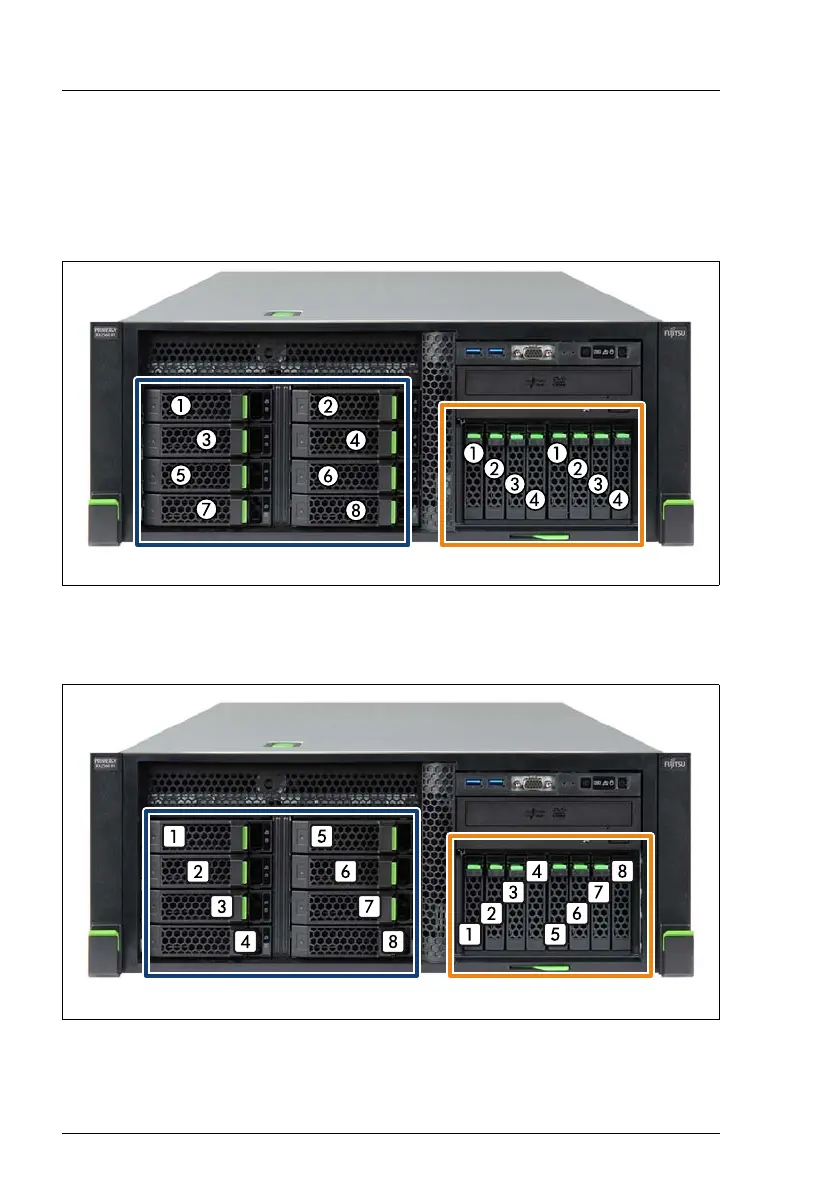

Figure 128: Mounting order for up to 8 3.5-inch HDDs and up to 8x 2.5-inch PCIe SSDs SFF
HDD/SSD naming scheme
Figure 129: Naming scheme for up to 8 3.5-inch HDDs and up to 8x 2.5-inch PCIe SSDs SFF
HDD PCIe SSD SFF
HDD PCIe SSD SFF
