210
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.3.5 Configuration with up to 12 HDD modules
(three backplanes)
Mounting order

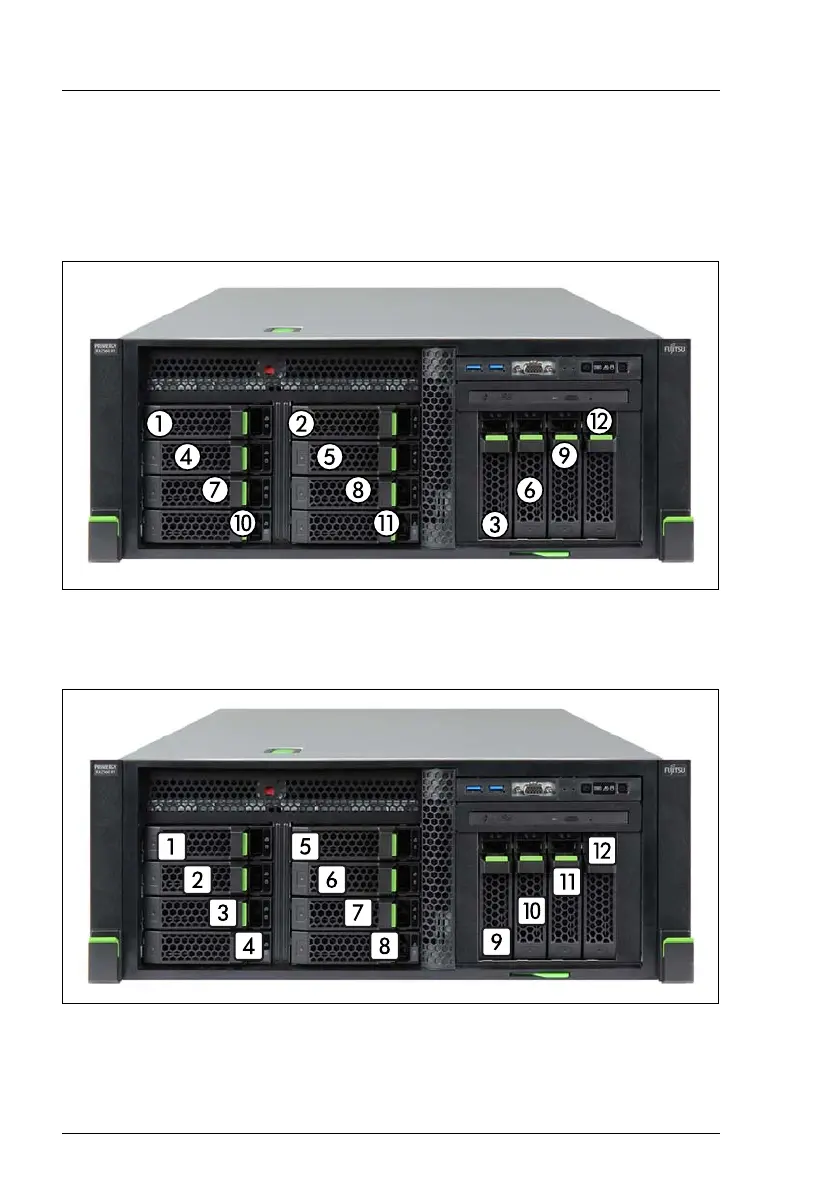

Figure 124: Mounting order for up to 12x 3.5-inch HDDs
HDD naming scheme
Figure 125: Naming scheme for 12x 3.5-inch HDDs
