Hard disk drive (HDD) / solid state drive (SSD)
HDD naming scheme

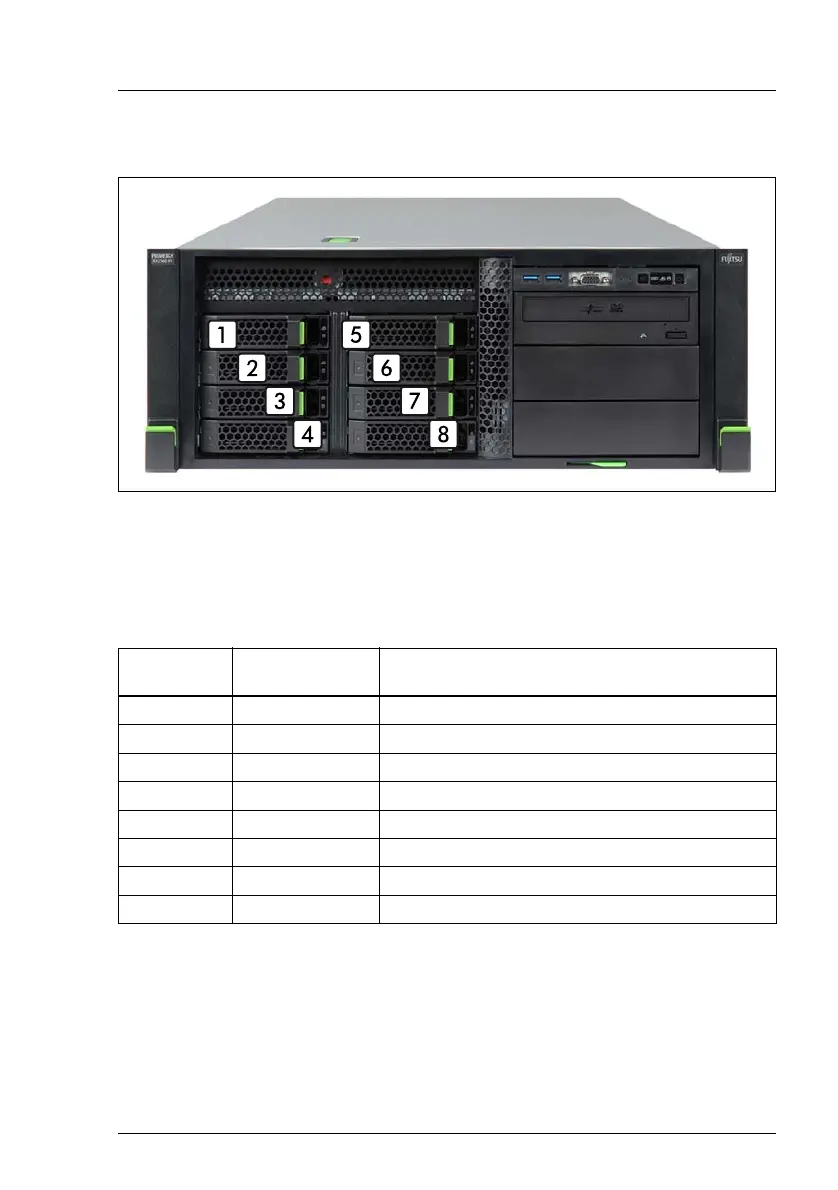

Figure 123: Naming scheme for up to 8x 3.5-inch HDDs
I The HDD numbering as listed in the ServerView RAID Manager differs
from the HDD mounting order:
With one SAS controller
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
[1] 0 Vendor Product (0)
[2] 1 Vendor Product (1)
[3] 2 Vendor Product (2)
[4] 3 Vendor Product (3)
[5] 4 Vendor Product (4)
[6] 5 Vendor Product (5)
[7] 6 Vendor Product (6)
[8] 7 Vendor Product (7)
