TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
475
System board and components
14.5.2 Removing the SATA DOM
14.5.2.1 Preliminary steps
Ê
"Shutting down the server" on page 58
Ê
"Disconnecting the power cord" on page 59
Ê
"Getting access to the component" on page 61
Ê
If applicable, remove the riser module 1 as described in section "Removing
a riser module" on page 98.
14.5.2.2 Removing the SATA DOM

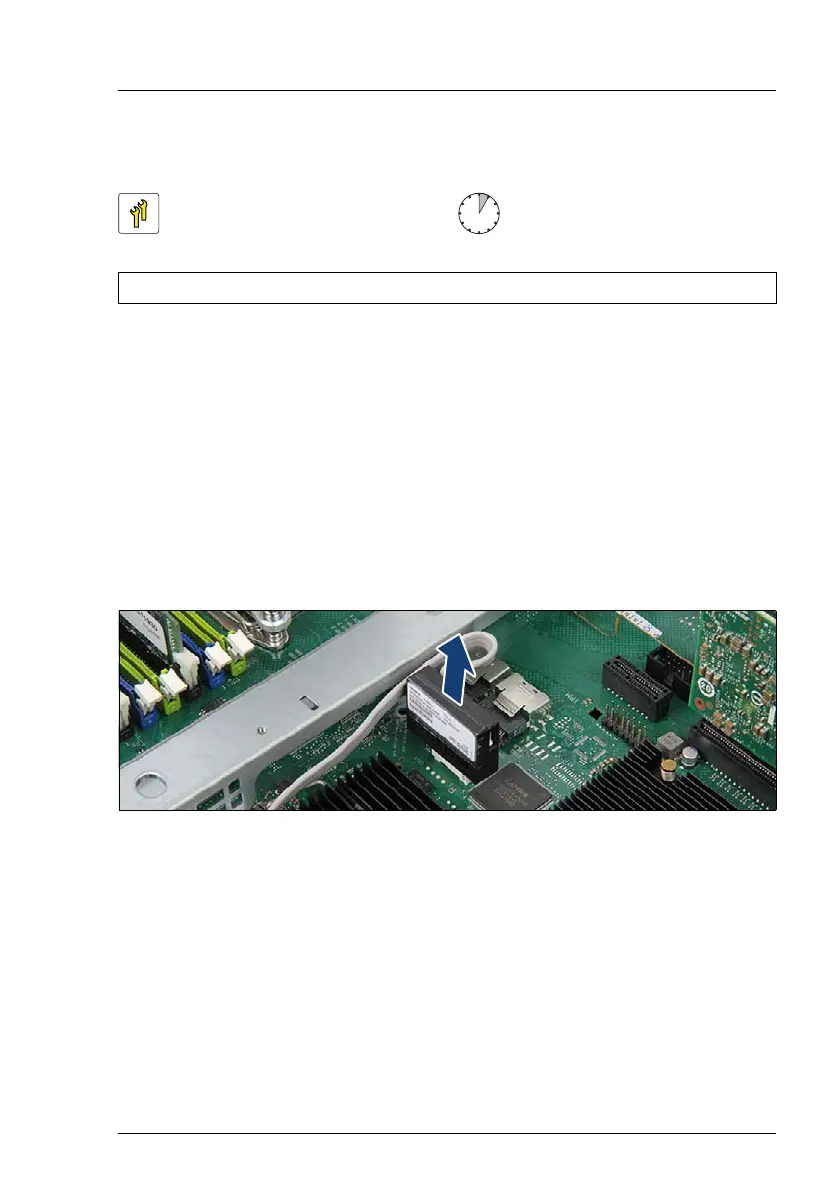

Figure 357: Removing the SATA DOM
Ê
Firmly remove the SATA DOM out of its connector.
14.5.2.3 Concluding steps
Ê
If applicable, install the riser module 1 as described in section "Installing a
riser module" on page 95.
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools:
tool-less
