Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Expansion cards and backup units
9.4.2.3 Preparing the FBU

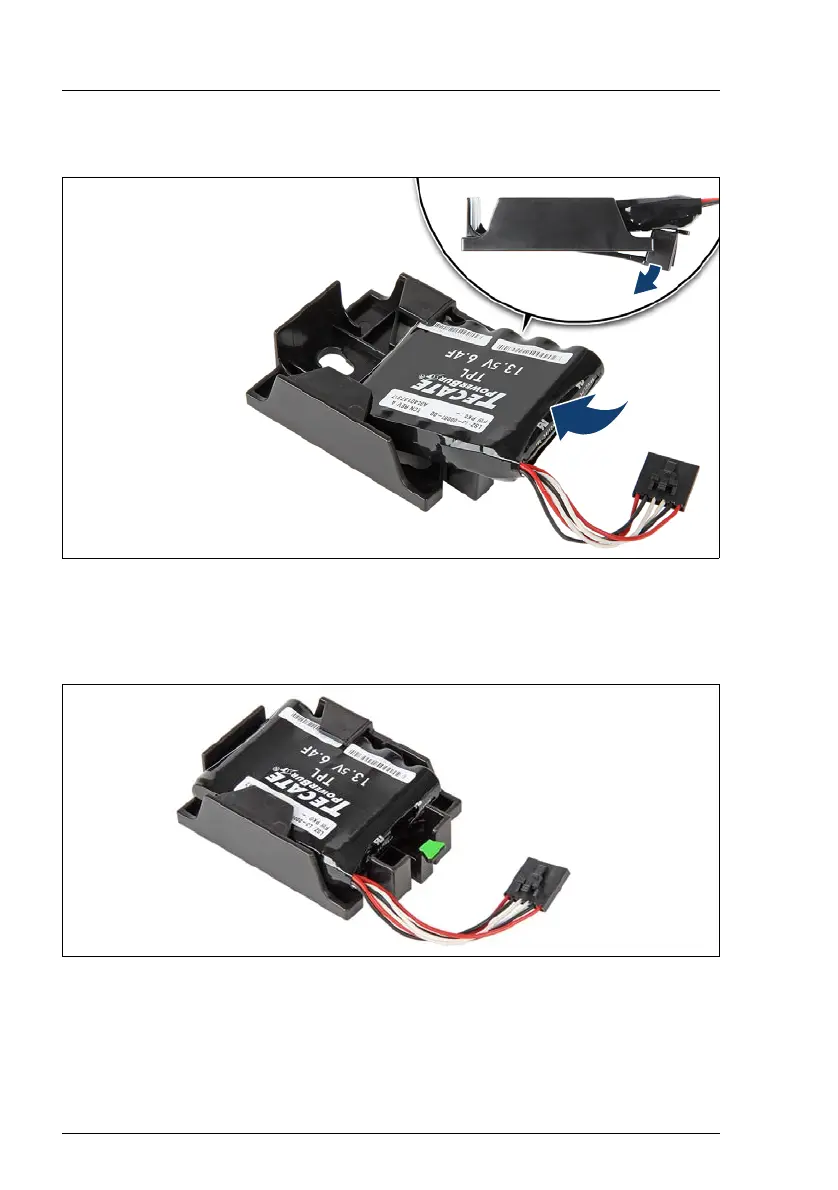

Figure 227: Installing the FBU in the FBU holder (A)
Ê
At a slight angle, fit the FBU under both retaining brackets of the FBU holder.
Ê
Push in the FBU until it locks in place.
Figure 228: Installing the FBU in the FBU holder (B)
Ê
Ensure that the FBU is properly seated in the FBU holder as shown.
