Hard disk drive (HDD) / solid state drive (SSD)

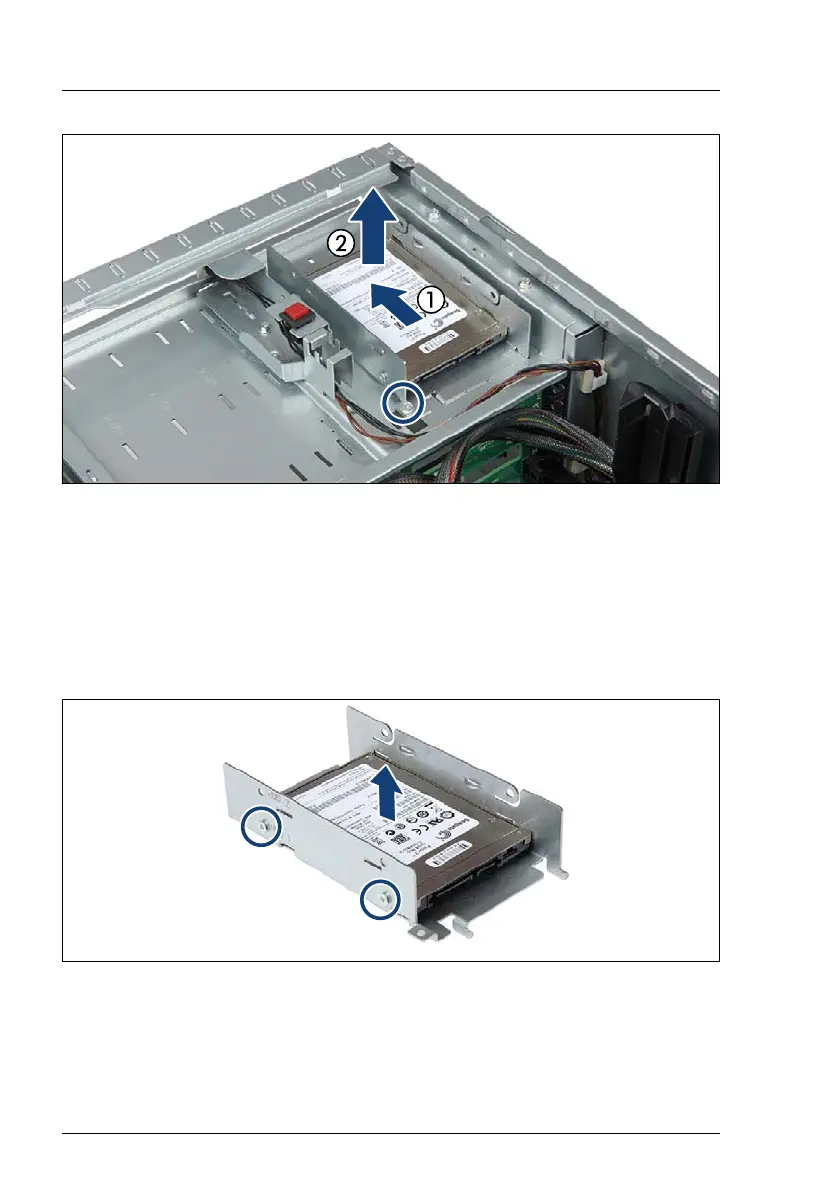

Figure 178: Removing the non-hot-plug cage
Ê
Remove one screw (see circle).
Ê
Slide the non-hot-plug cage in the direction of the arrow (1).
Ê
Take off the non-hot-plug cage from the top cover (2).
7.6.1.3 Removing a non-hot-plug HDD/SSD
Figure 179: Removing the non-hot-plug HDD/SSD 1
Ê
Remove the four screws (two screws on each side, circles show one side).
Ê
Take off the non-hot-plug HDD/SSD 1 from the non-hot-plug cage.
Ê
If applicable, remove the non-hot-plug HDD/SSD 2 in the same way.
