Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.2.13.2 Removing the 2.5-inch HDD bay top cover
I
The 2.5-inch HDD front panel does not need to be removed in order to
replace a 2.5-inch HDD SAS backplane. In the figures, the front panel
has been removed for illustration purposes only.

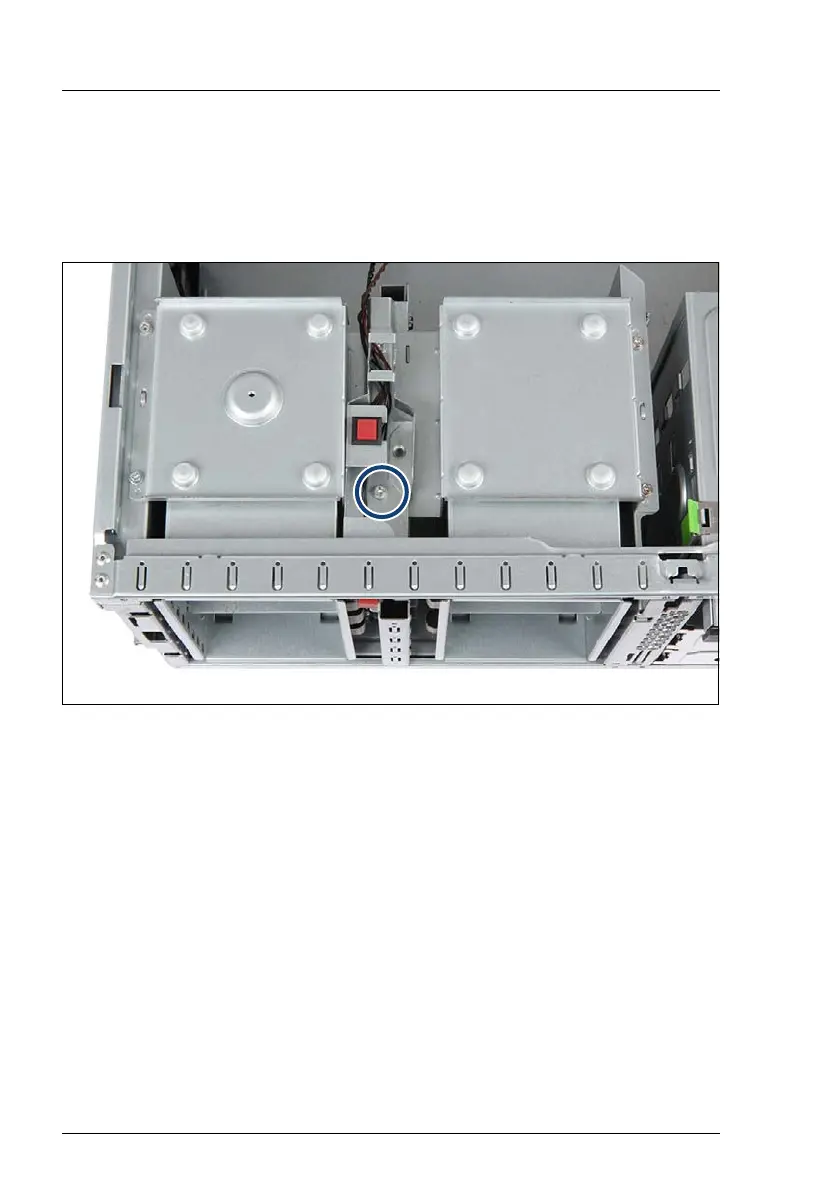

Figure 91: Removing the intrusion switch holder (A)
Ê
Remove one screw from the intrusion switch holder as shown.
