TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
67
Basic hardware procedures
4.4.1.5 Removing the rack front cover
I
The rack front cover consists of a plastic frame and two rack mounting
brackets. For further information, refer to section "Assembling the rack
front cover" on page 505.

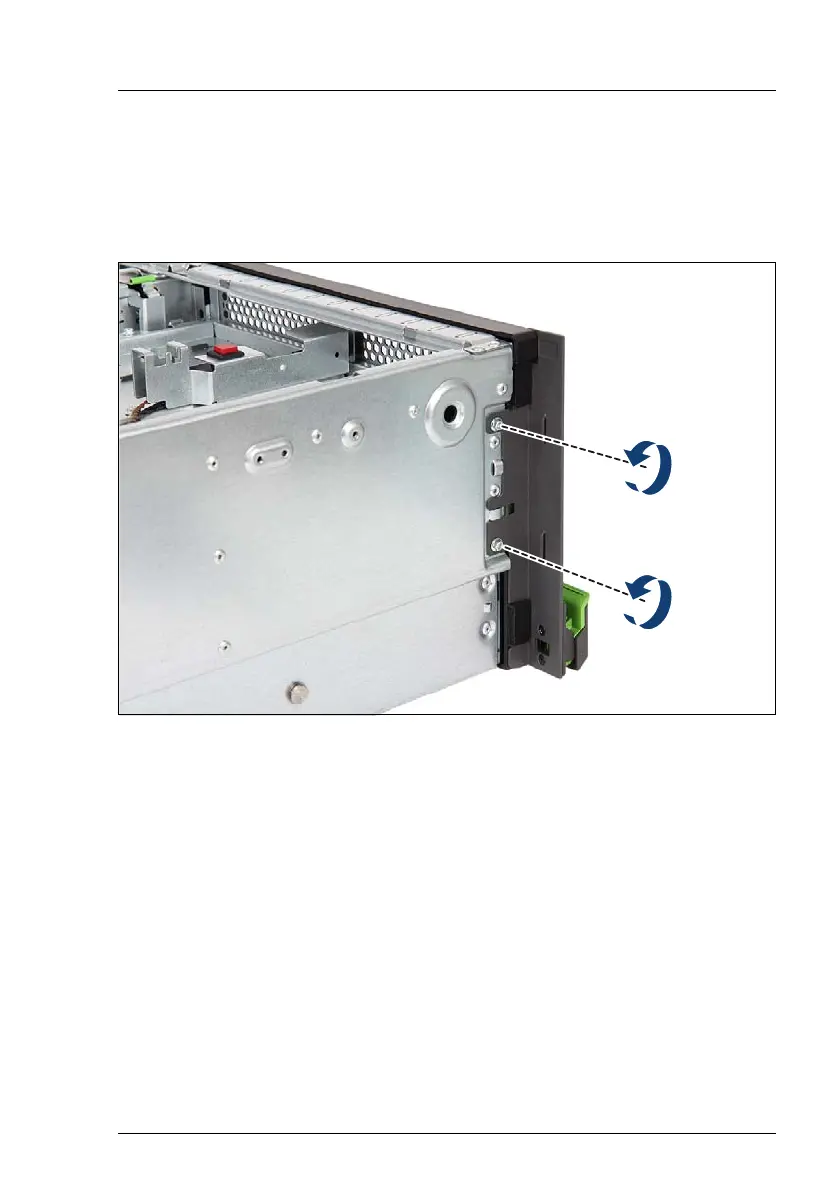

Figure 10: Removing the rack front cover (A)
Ê
Remove two screws from the side brackets on either side of the rack front
cover.
