TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
185
Hard disk drive (HDD) / solid state drive (SSD)
7.2.13.4 Installing a 2.5-inch HDD/SSD SAS backplane

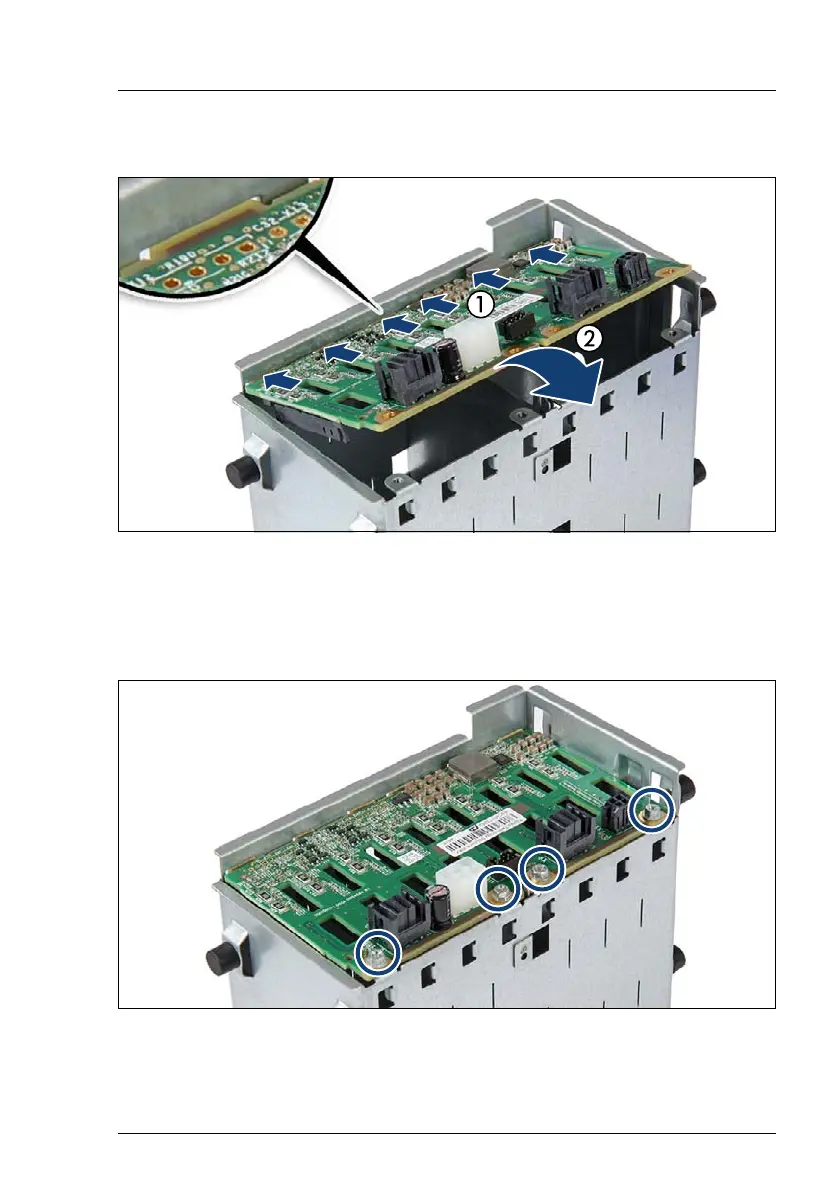

Figure 97: Installing the new 2.5-inch HDD/SSD SAS backplane (A)
Ê
At a slight angle, fit the new 2.5-inch HDD SAS backplane into the six
recesses in the HDD cage (1).
Ê
Fold down the 2.5-inch HDD SAS backplane (2).
Figure 98: Installing the new 2.5-inch HDD/SSD SAS backplane (B)
Ê
Secure the 2.5-inch HDD SAS backplane in the HDD cage with four
M3 x 4.5 mm screws (see circles).
