TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
309
Expansion cards and backup units
9.3.5.2 Removing the slot cover lock

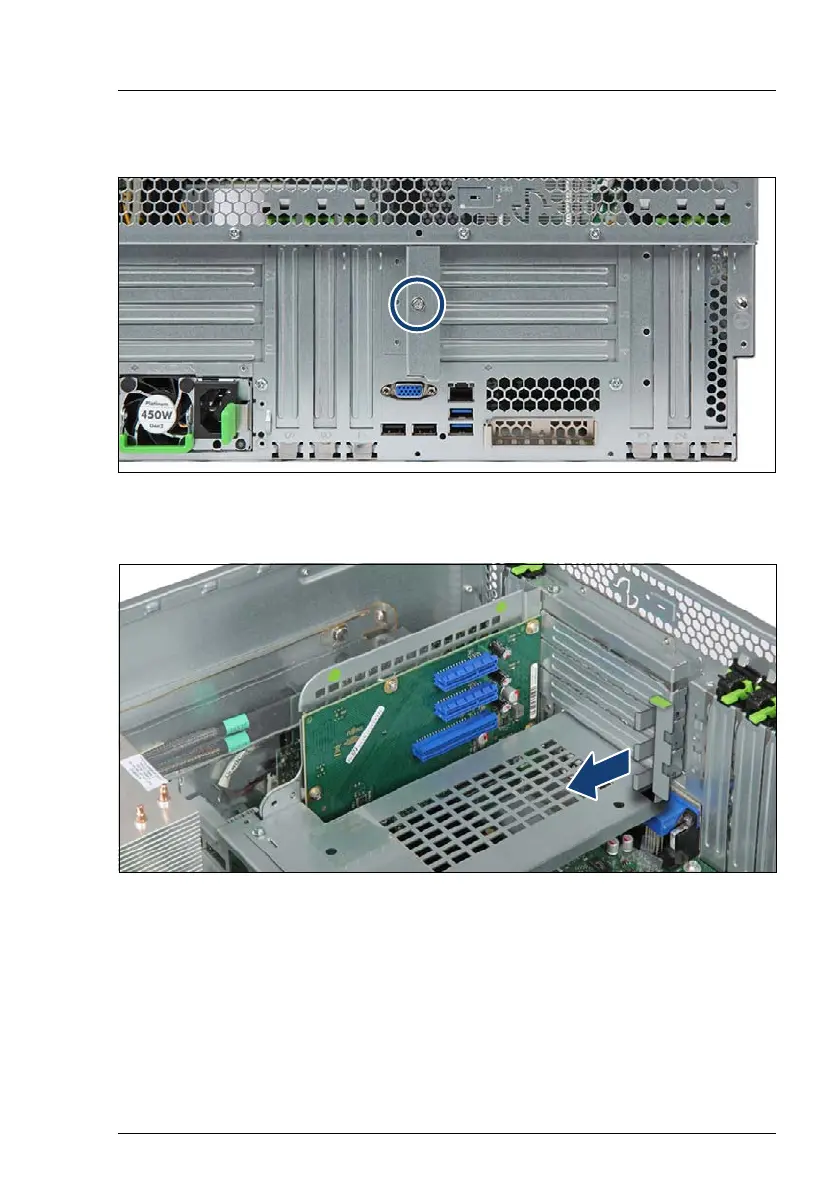

Figure 215: Removing the slot cover lock (A)
Ê
If applicable, remove the screw at the rear side (see circle).
Figure 216: Removing the slot cover lock (B)
Ê
Remove the slot cover lock.
