Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Expansion cards and backup units

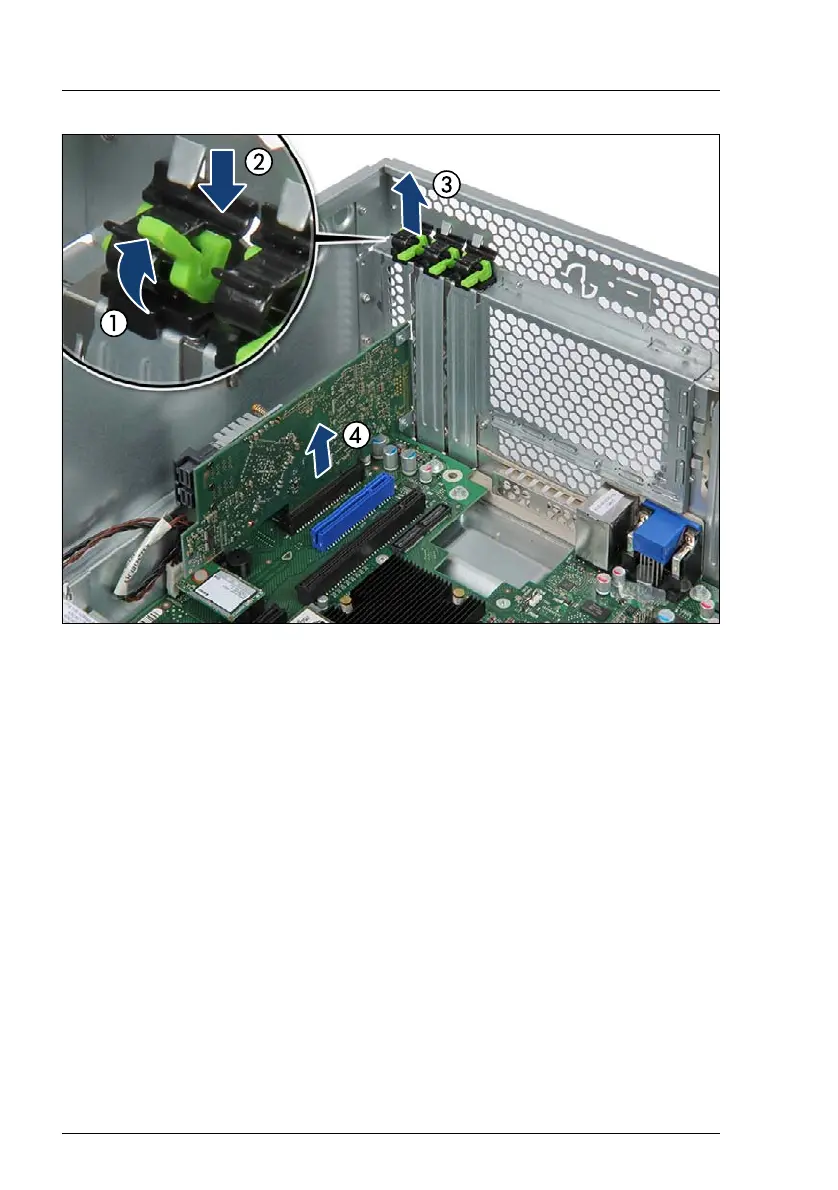

Figure 211: Removing an expansion card - example PCI slot 1
Ê
Fold up the locking handle on the slot cover clamp (1, see close-up).
Ê
Press down on the slot cover clamp to disengage it (2, see close-up).
Ê
Remove the slot cover clamp (3).
Ê
Carefully pull up the expansion card in a vertical motion and remove it from
its slot (4).
9.3.2.3 Installing the slot cover
V CAUTION!
Always replace slot covers into unused PCI slot openings to comply with
applicable EMC regulations and satisfy cooling requirements.
