Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.4.4.3 Installing the new HDD/SSD backplane

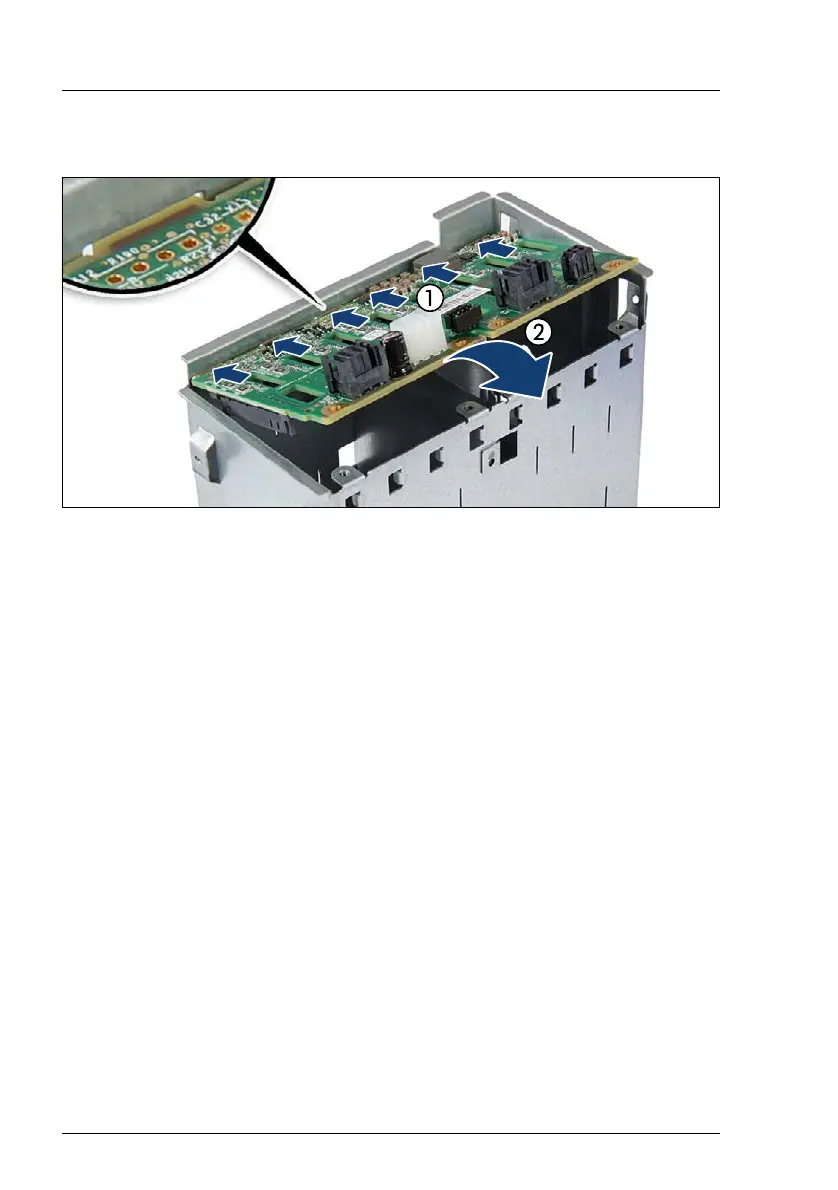

Figure 159: Installing the HDD/SSD backplane
Ê
At a slight angle, fit the HDD/SSD backplane into the six recesses in the
HDD extension box (1).
Ê
Fold down the HDD/SSD backplane (2).
Ê
Fasten the HDD/SSD backplane with four screws (see figure 157).
Ê
Install the 8x 2.5-inch HDD extension box as described in section "Installing
the 8x 2.5-inch HDD extension box" on page 238.
7.4.4.4 Concluding steps
Ê
"Installing the system fan holder" on page 94
Ê
"Installing the system air duct" on page 92
Ê
"Reassembling" on page 74
Ê
Reinstall all HDDs into their original slots in the HDD extension box as
described in section "Installing 2.5-inch HDD/SSD modules" on page 173.
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
