Hard disk drive (HDD) / solid state drive (SSD)

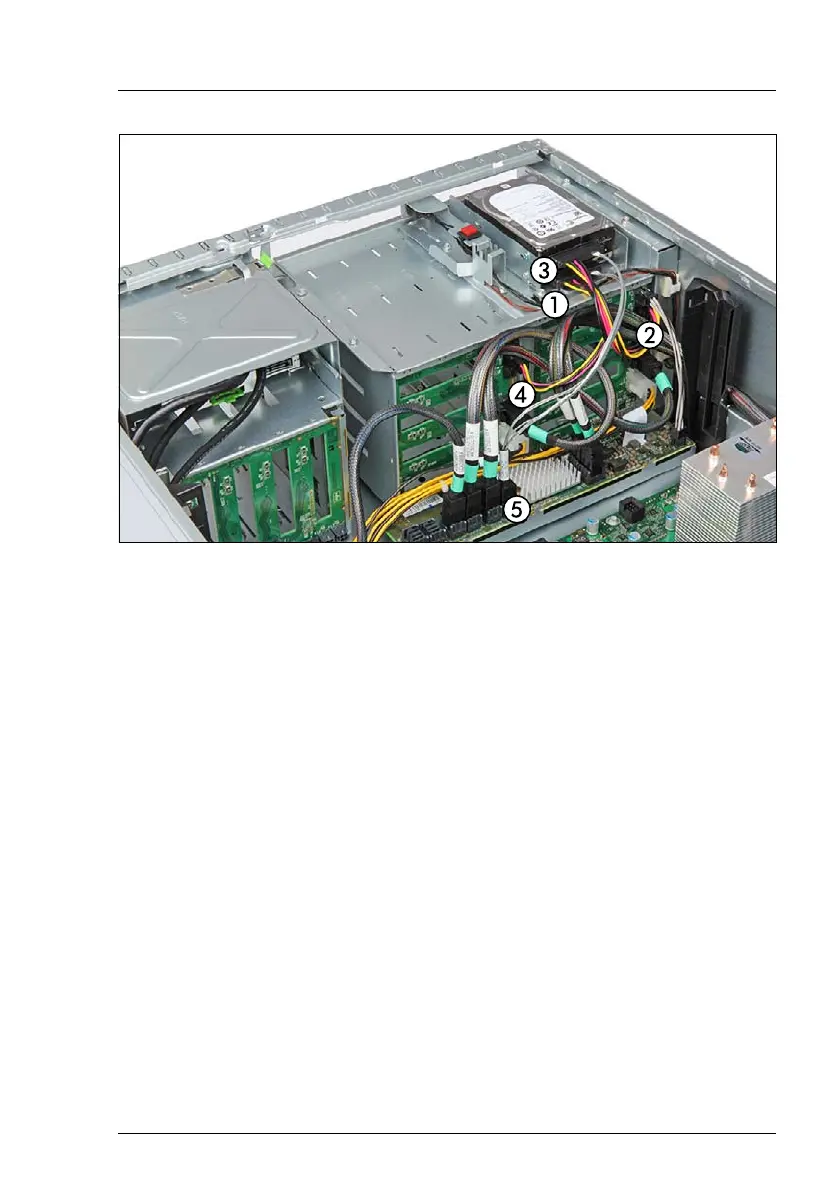

Figure 185: Connecting cables to the non-hot-plug HDDs/SSDs
Ê
Connect the cable C35:
– (1) data/power connector (P2) to non-hot-plug HDD/SSD 1
– (2) power connector to backplane 1 connector X18
– (3) if applicable, data/power connector (P3) to non-hot-plug HDD/SSD 2
– (4) if applicable, power connector to backplane 2 connector X18
– (5) data connector to expander board connector X10
I
For a complete cabling overview, please refer to section "Cabling
plans" on page 512.
7.6.2.3 Concluding steps
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Resuming BitLocker functionality" on page 136
Ê
"Switching on the server" on page 90
