7.4.5.5 Installing the 4x 3.5-inch HDD extension box

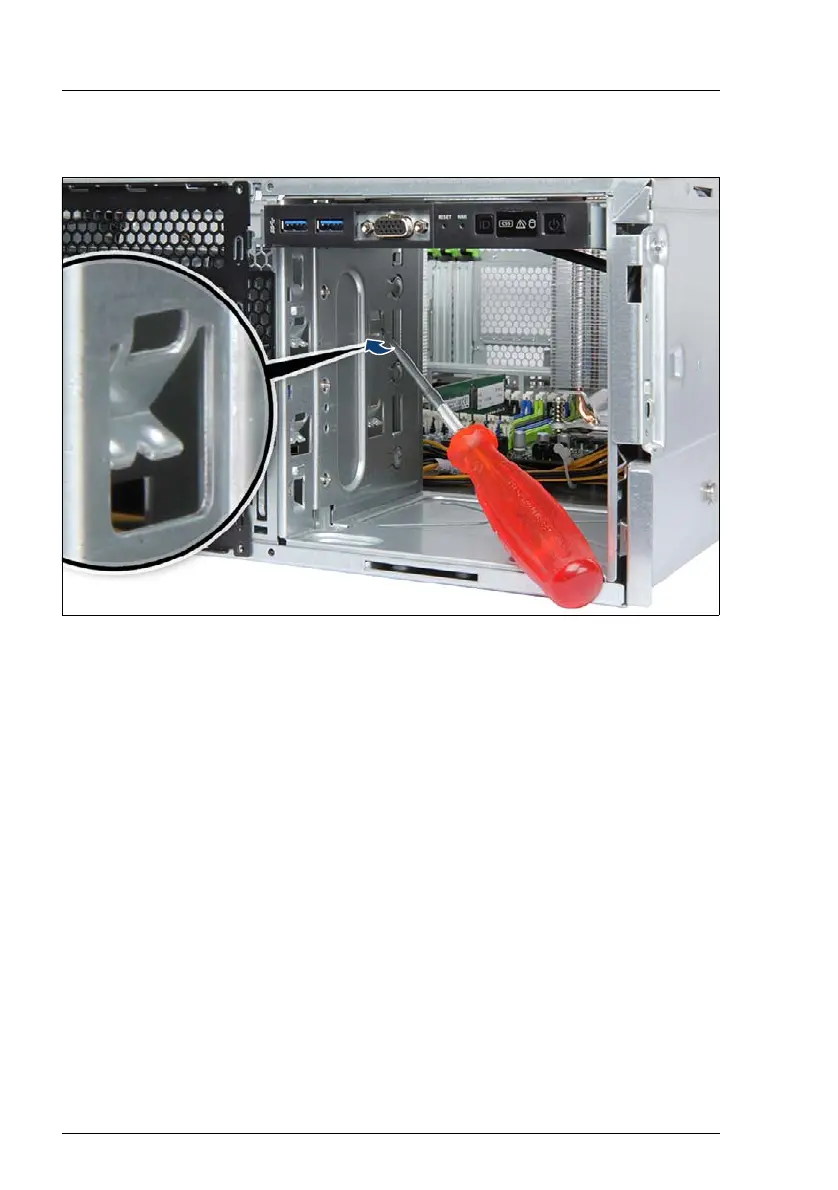

Figure 160: Bending in mounting brackets
Ê
Using a screw driver, bend the mounting brackets of the top and middle
installation bays (bay 1 and bay 2) inwards (see close-up):
Ê
Bend in the four mounting brackets on each side of the drive cage.
Ê
Disengage the accessible drive locking bar as described in section "Opening
the accessible drive locking bar" on page 100.
