TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
249
Hard disk drive (HDD) / solid state drive (SSD)

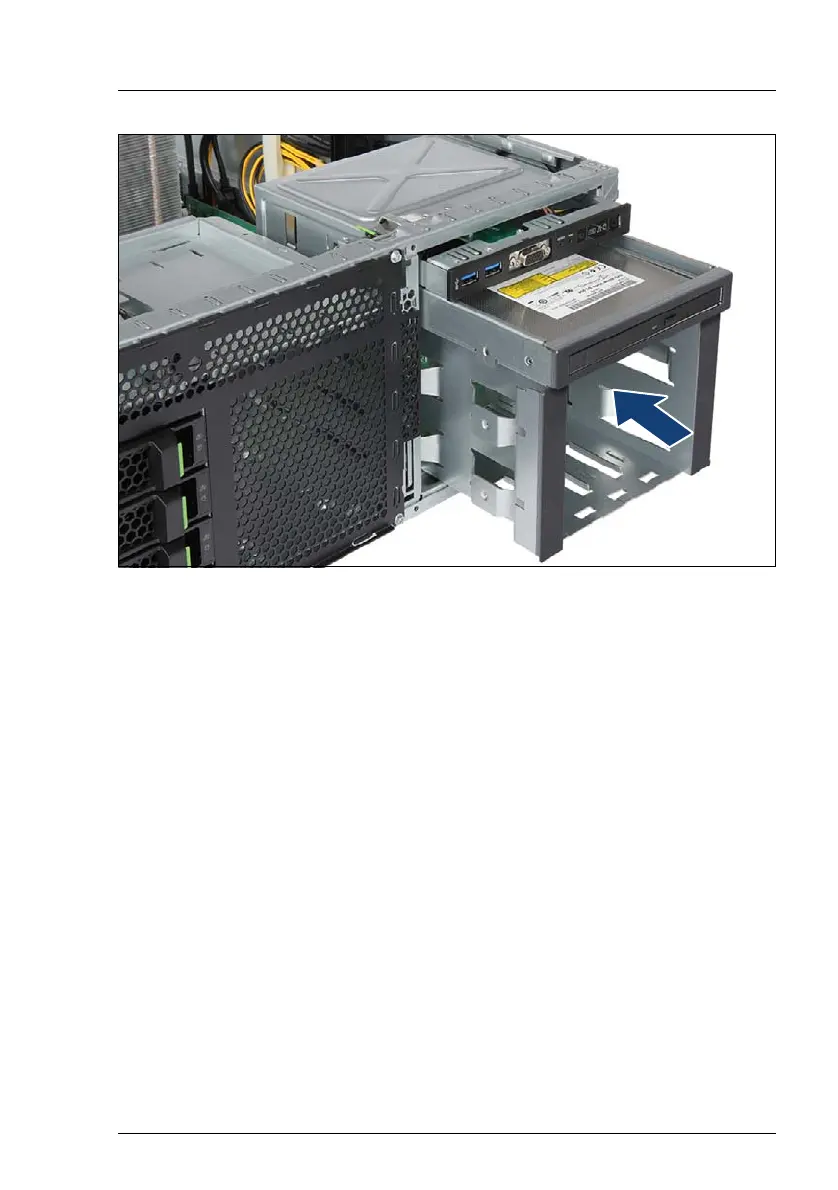

Figure 161: Inserting the 4x 3.5 HDD extension box
Ê
If applicable, route the cables of the ultraslim ODD through the bay.
Ê
Insert the 4x 3.5-inch HDD extension box into installation bays 1 to 3 and
carefully push in until it lines up with the front panel.
Ê
Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 102.
