16.3 Replacing the intrusion switch cable
16.3.1 Preliminary steps
Ê
"Locating the defective server" on page 55
Ê
"Shutting down the server" on page 58
Ê
"Disconnecting the power cord" on page 59
Ê
"Getting access to the component" on page 61
Ê
"Removing the system air duct" on page 91
Ê
"Removing the system fan holder" on page 93
16.3.2 Removing the intrusion switch cable

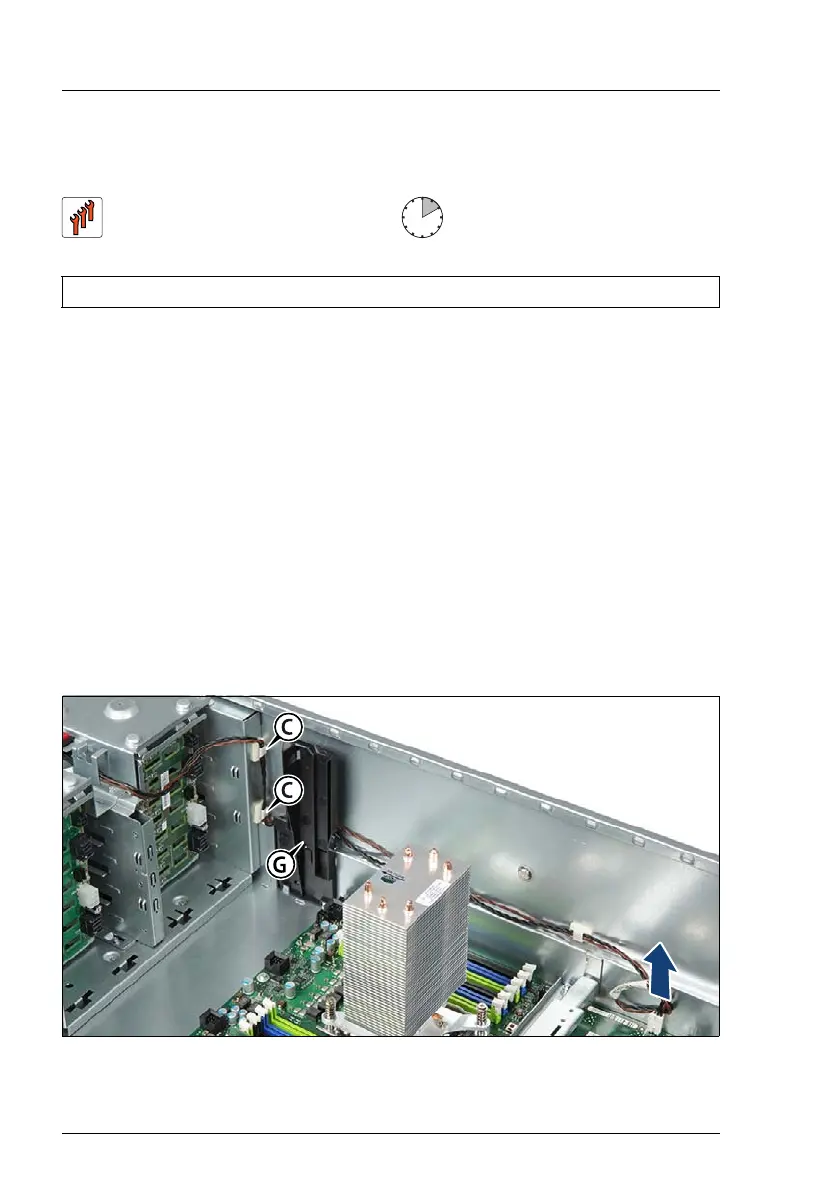

Figure 407: Disconnecting the intrusion switch cable
Ê
Disconnect the intrusion switch cable from the system board.
Field Replaceable Unit
(FRU)
Average task duration:
10 minutes
Tools:
Phillips PH2 / (+) No. 2 screw driver
