324
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Expansion cards and backup units

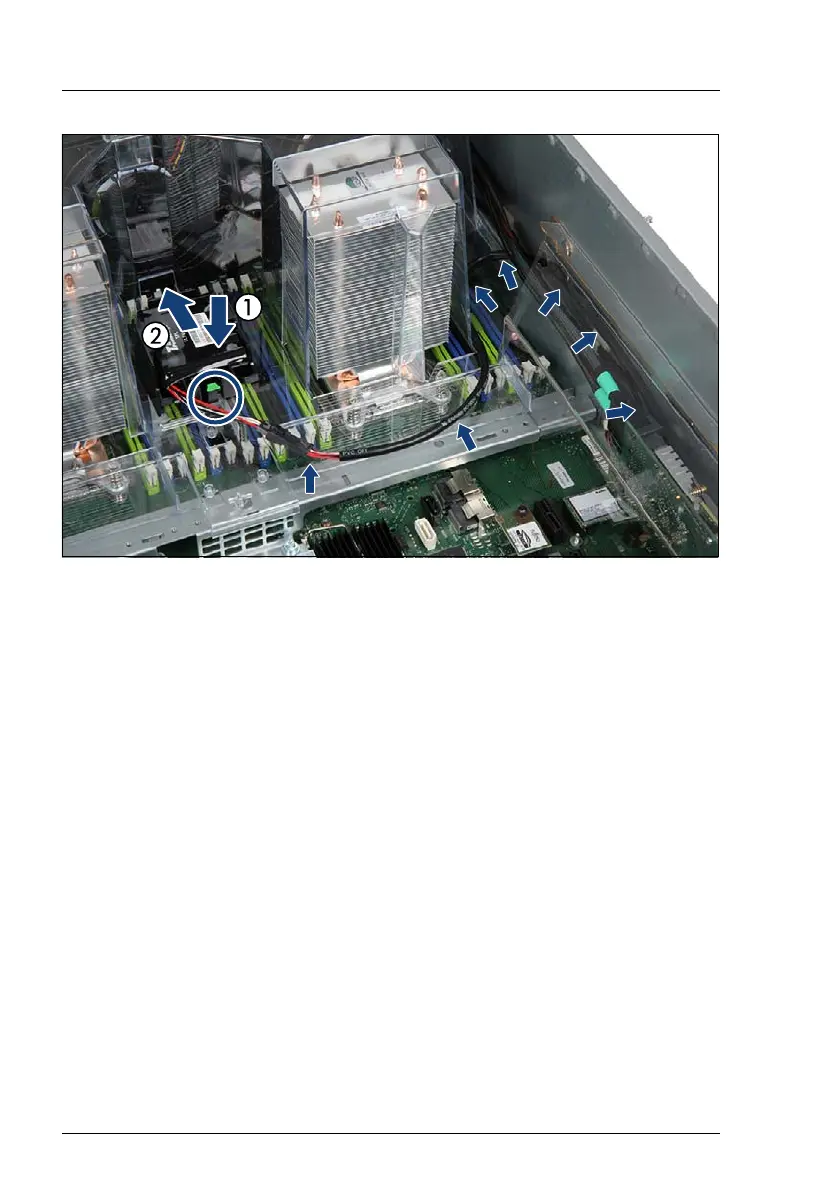

Figure 231: Installing the FBU with the FBU holder - example FBU 1
Ê
Place the FBU holder on the system air duct so that the three shoulder screw
caps on the system air duct rest in the wide ends of the keyhole slots on the
FBU holder (1).
Ê
Slide the FBU holder in direction of the arrow as far as it will go (2).
The shoulder screw caps on the system air duct will lock in the narrow ends
of the keyhole slots on the FBU holder.
Ê
Ensure that the locking handle on the FBU holder properly snaps in place
(see circle).
Ê
Run the FBU cable as shown (see arrows).
9.4.2.5 Concluding steps
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
If applicable, update the firmware of the RAID controller that has been
connected to the FBU as described in section "Updating RAID controller
firmware" on page 122.
Ê
"Enabling SVOM boot watchdog functionality" on page 130
