Fujitsu PRIMERGY TX2560 M2

TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 447
Front panel and external connectors
13.2.2.2 Removing the VGA connector

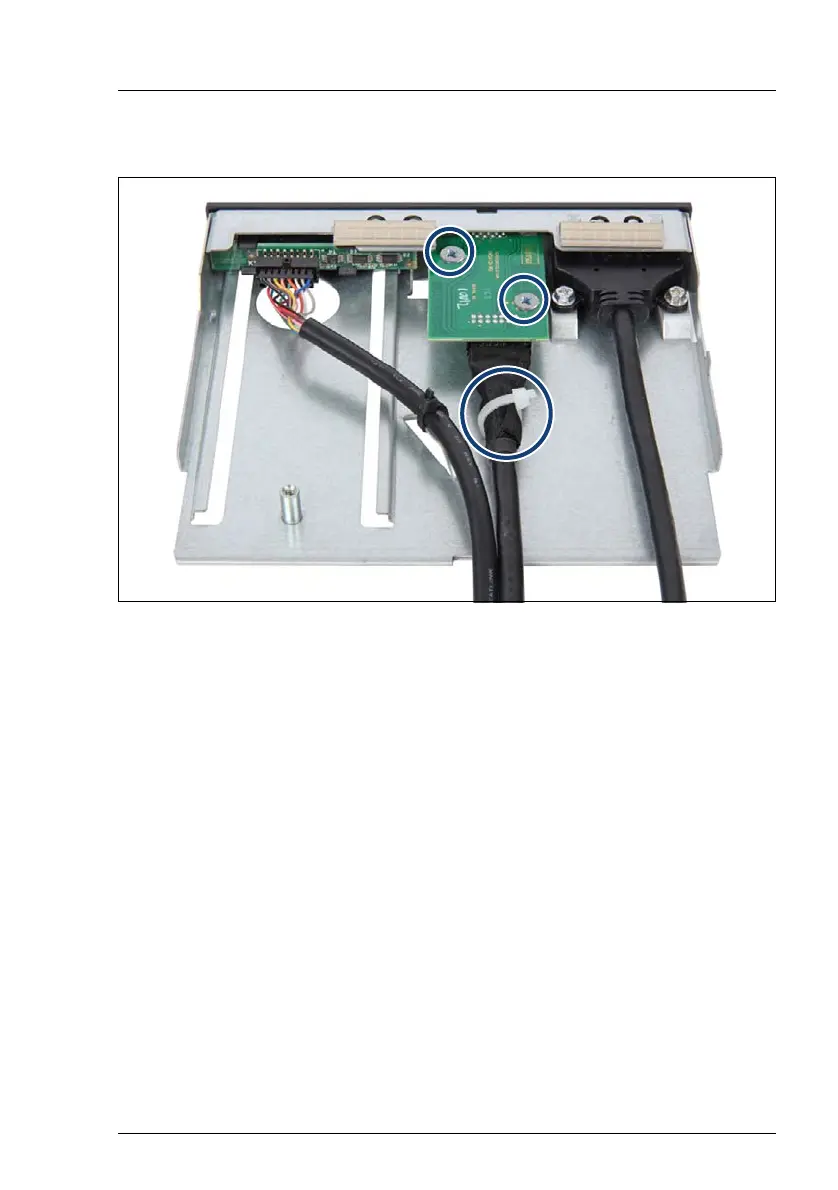

Figure 334: Removing the front VGA connector (A)
Ê Remove the two screws (see circles).
Ê Cut through the cable tie (see circle).
