Expansion cards and backup units
9.1 Basic information
The system board offers six PCIe Gen 3 slots for installing expansion cards and
one slot for installing a DynamicLoM module.
As an option, slot 3 and slot 9 can be equipped with a riser module. In this case
slot 3 and slot 9 are occupied by the riser cards. Each riser module offers three
PCIe Gen 3 slots.

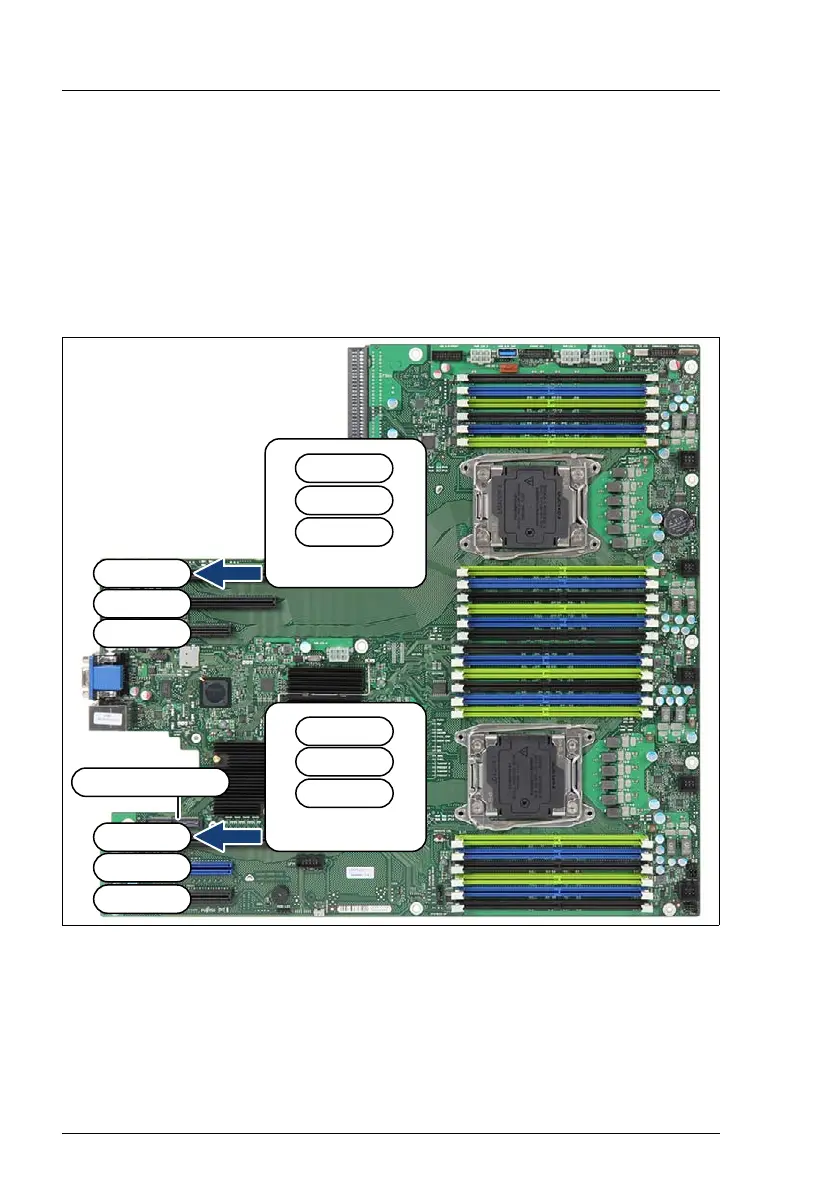

Figure 200: PCI slot overview on the system board
Slot 9
Slot 8
Slot 7
Slot 3
Slot 2
Slot 1
Riser module 2
Slot 12
Slot 11
Slot 10
Riser module 1
Slot 6
Slot 5
Slot 4
Dynamic LoM
