TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
105
Basic hardware procedures
4.11.3.2 Installing accessible drive filler covers

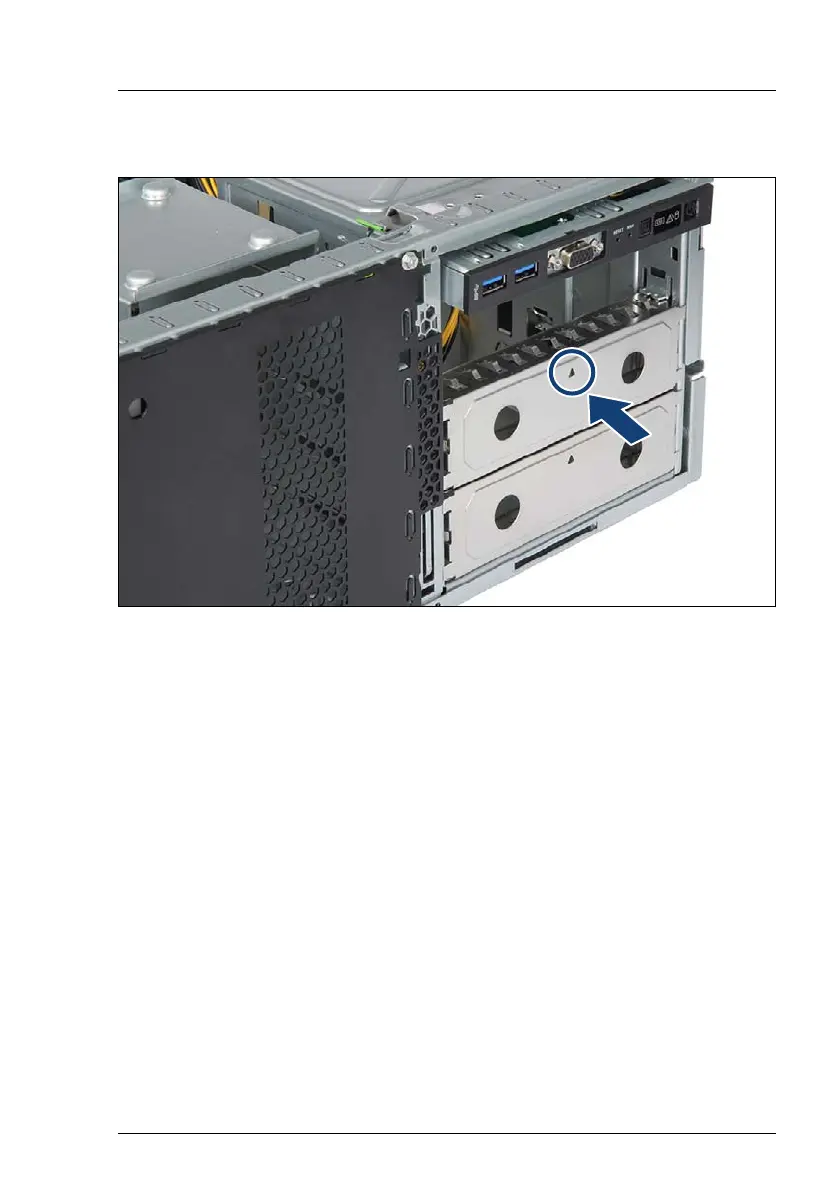

Figure 56: Installing an accessible drive filler cover
Ê
Hold the accessible drive filler cover by its two handle recesses and insert it
into the empty installation bays with the punched-out arrow symbol facing up
(see circle).
V CAUTION!
Always replace filler covers into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
