Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Basic hardware procedures
4.5 Reassembling
V CAUTION!
●
Before attaching the covers, make sure no unnecessary parts or tools
are left inside the server.
●
In order to comply with applicable EMC regulations (regulations on
electromagnetic compatibility) and satisfy cooling requirements, the
server must not run while the top/side cover is removed.
●
For further safety information, please refer to chapter "Important
information" on page 43.
4.5.1 Rack server (RX2560 M2)
4.5.1.1 Installing the rack mounting frame

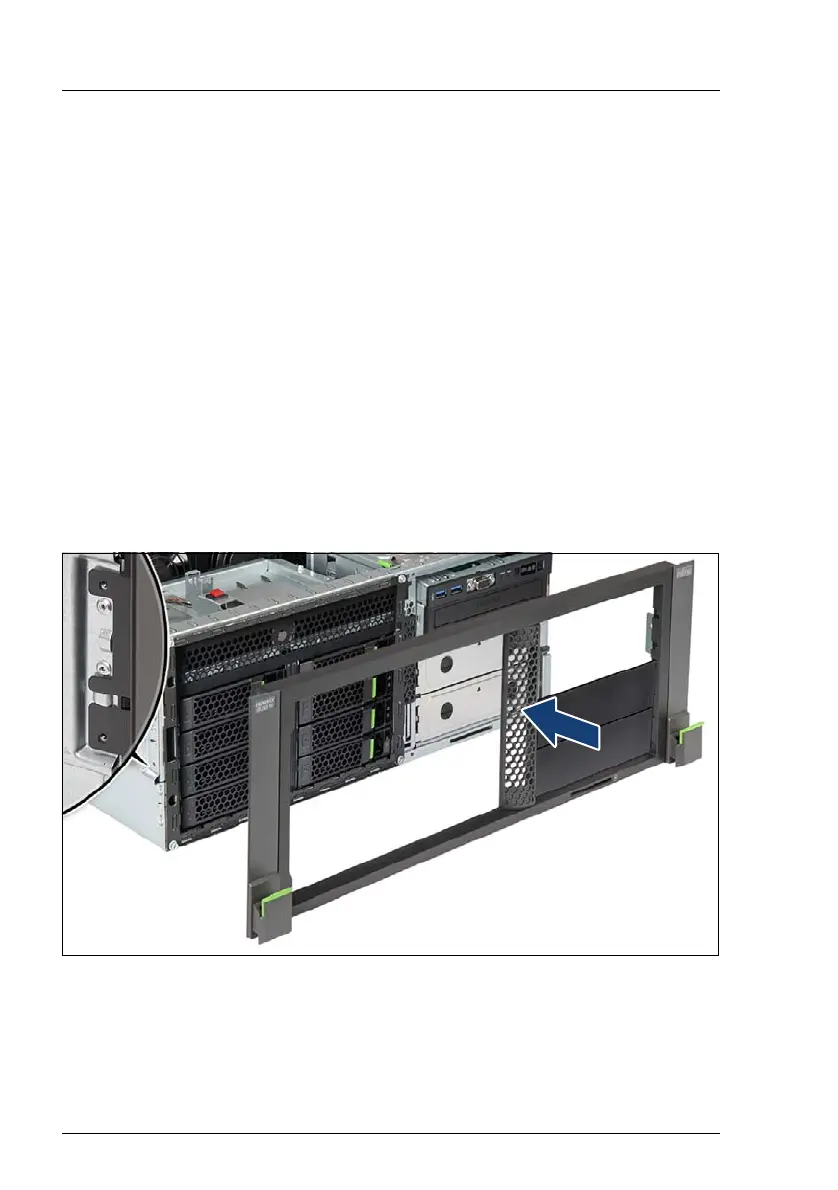

Figure 21: Installing the rack mounting frame (A)
Ê
Fit the rack mounting frame on the server front.
Ê
Ensure that the rack mounting brackets properly engage on both sides of the
chassis as shown in the close-up.
