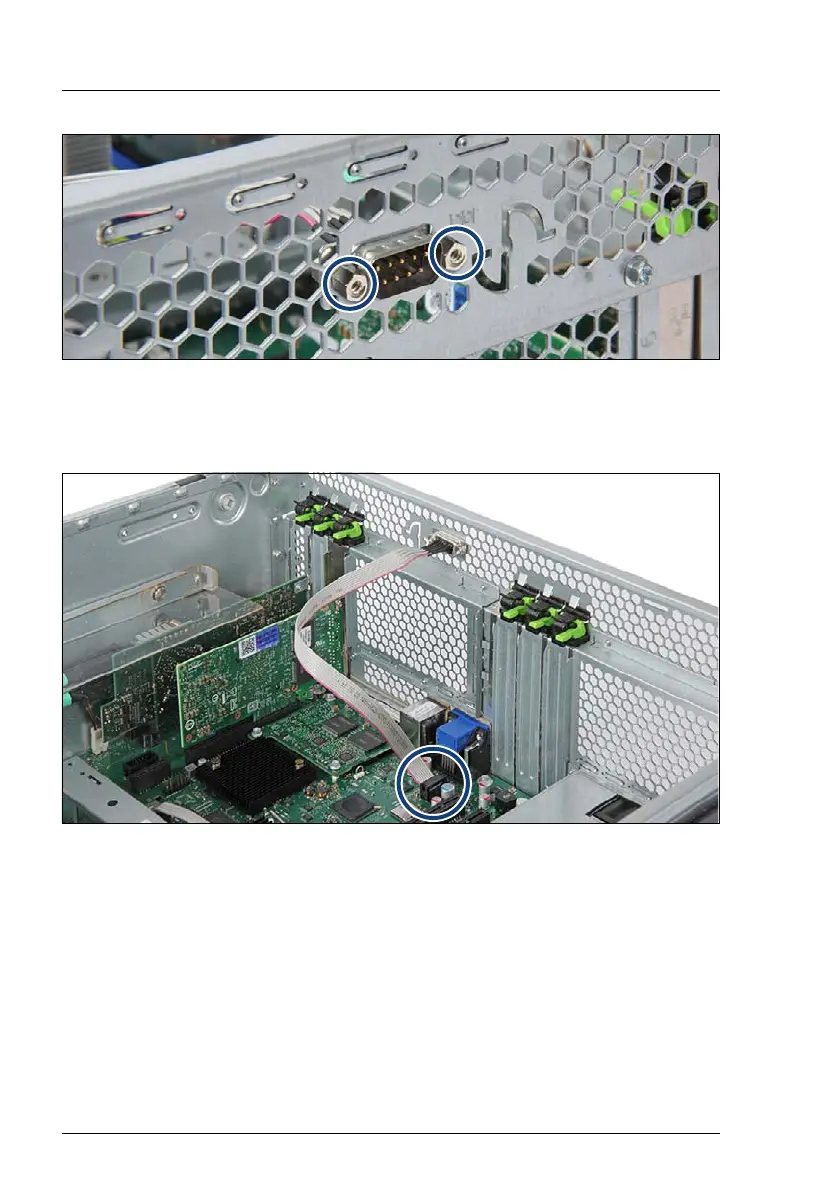

Figure 253: Installing the serial interface
Ê
Insert the serial interface from inside and secure it with the two hexagon
bolts UNC 4-40 (see circles).
Figure 254: Connecting the serial interface cable
Ê
Connect the serial interface cable to the system board connector "COM 1".
9.6.1.3 Concluding steps
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
Ê
"Enabling SVOM boot watchdog functionality" on page 130
