342
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Expansion cards and backup units
Ê
If no new DynamicLoM module will be installed:
Ê
Remove the three bolts (see figure 248).
Ê
Fasten the system board screw (see figure 246).
9.5.3.3 Installing the dummy cover

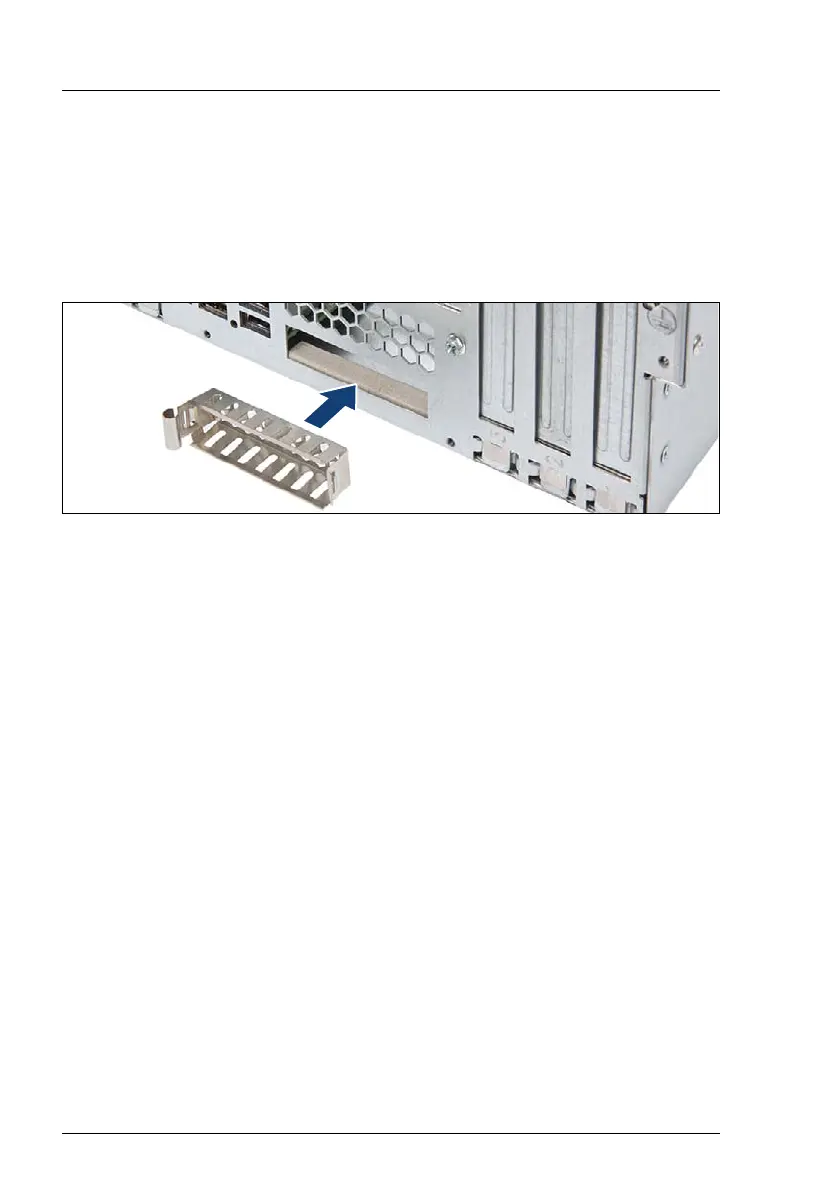

Figure 251: Installing the dummy cover
Ê
Insert the dummy cover. Notice the position of the handle.
9.5.3.4 Concluding steps
Ê
If applicable, install the riser module 1 as described in section "Installing a
riser module" on page 95.
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
Ê
"Enabling SVOM boot watchdog functionality" on page 130
