TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
65
Basic hardware procedures
4.4.1.3 Removing the top cover

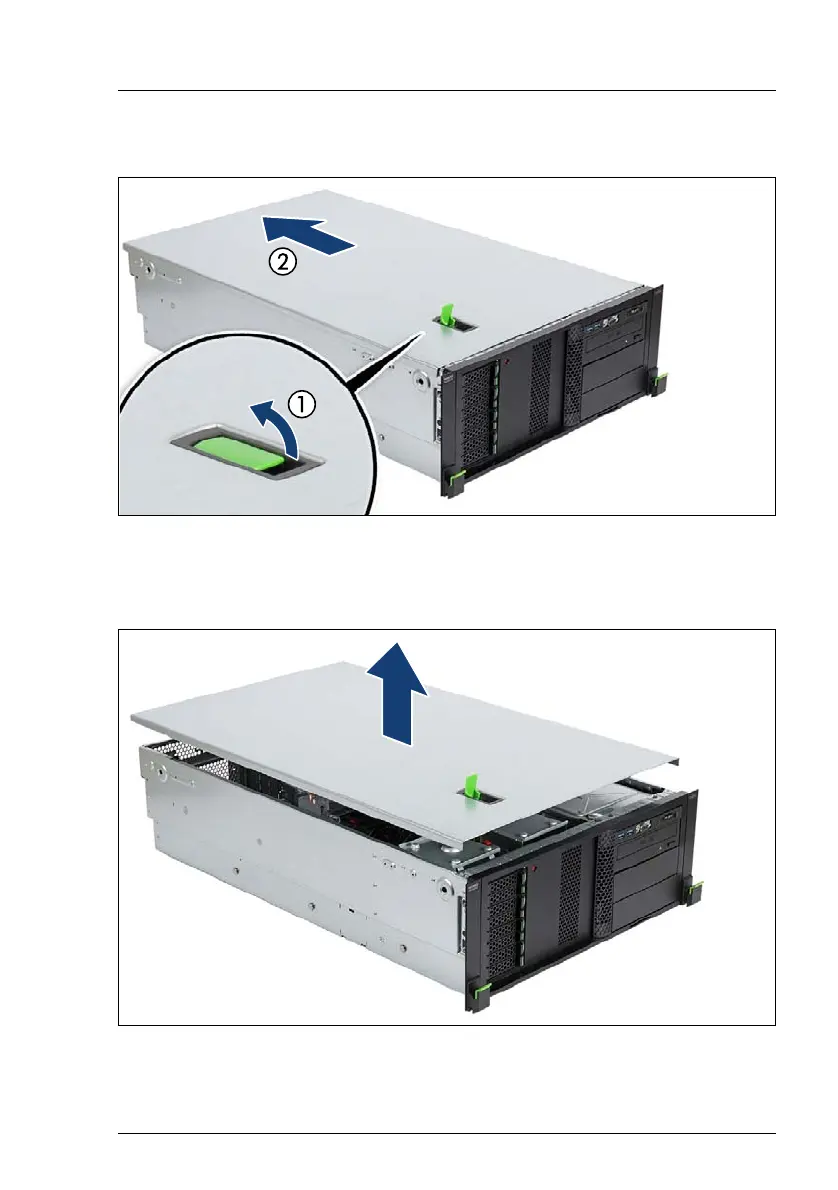

Figure 7: Removing the top cover (rack server)
Ê
Open the locking lever (1). This will slide the top cover back (2) disengaging
the locking mechanism.
Figure 8: Removing the top cover (rack server)
Ê
Remove the top cover.
