64
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Basic hardware procedures

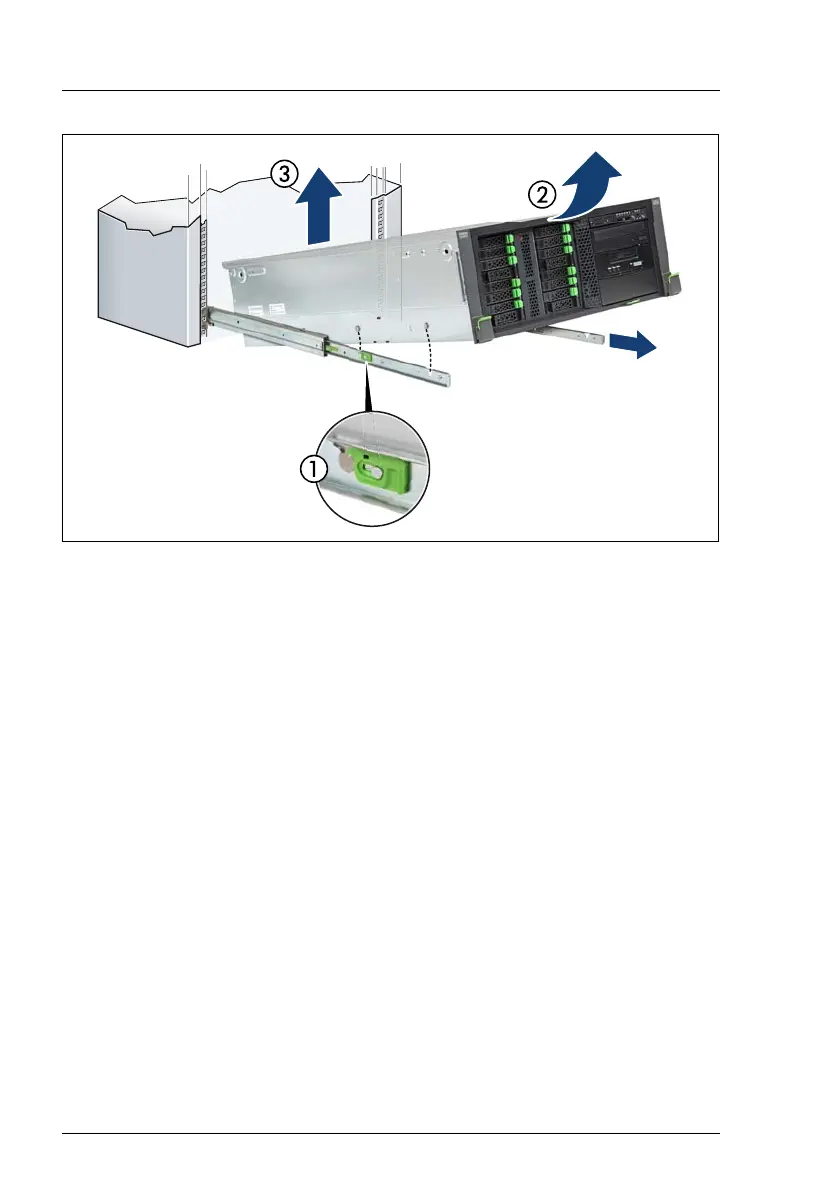

Figure 6: Removing the server from the rack
Ê
Release the locking bars on both rack rails (1).
Ê
Lift up the front of the server as shown so that the front and middle rack
mounting bolts are disengaged from the mounting points on the rack rails
(2).
Ê
Lift the server out of the rear mounting points (3) and place it on an even
surface.
