Accessible drives
Ê Ensure that the four pins on the frame (see arrows) engage with the side
holes on the dummy insert.
Ê Insert the slimline ODD dummy module into the Multibay box and push back
until the locking tab engages (see figure 298).
12.5.2.4 Removing the LSD module from the Multibay box

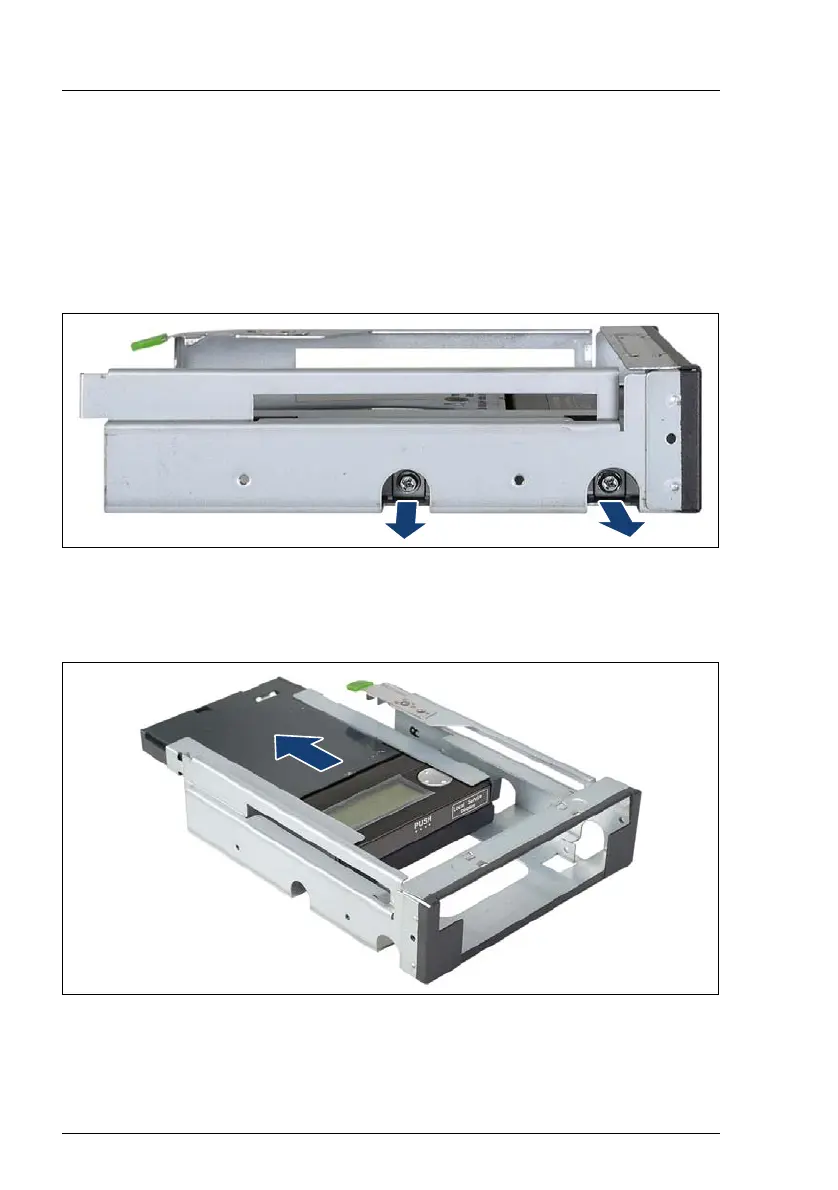

Figure 308: Removing the 3.5-inch installation frame from the Multibay box (A)
Ê Remove two screws on either side of the Multibay box to disengage the 3.5-
inch installation bay.
Figure 309: Removing the 3.5-inch installation frame from the Multibay box (B)
Ê Slide the 3.5-inch installation frame out of the Multibay box as shown.
