TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
407

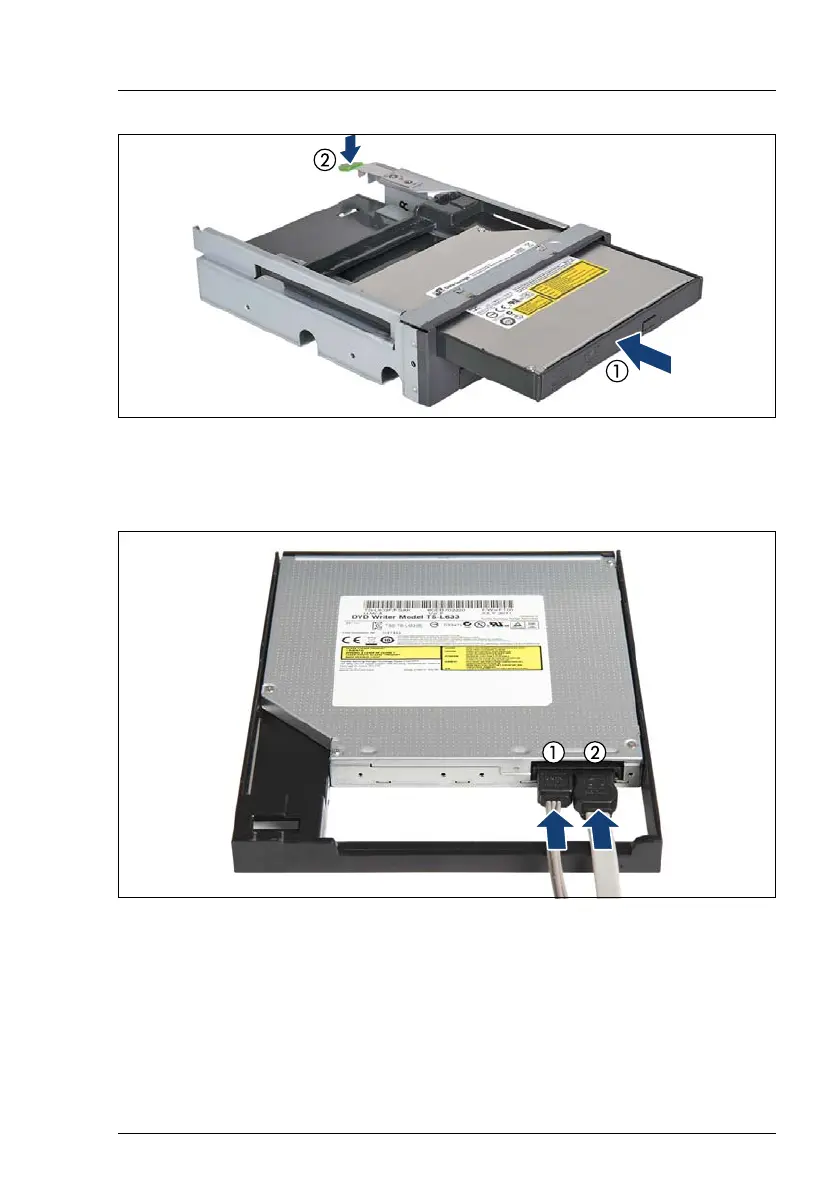

Figure 298: Mounting the slimline ODD module in the Multibay box
Ê
Insert the slimline ODD module into the Multibay box (1) and push back until
the locking tab (2) engages.
Figure 299: Mounting the slimline ODD in the installation frame (B)
Ê
Connect the SATA power cable (1) and the SATA cable (2) to the slimline
ODD.
