Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.7 SAS expander board
7.7.1 Installing the SAS expander board
7.7.1.1 Preliminary steps
Ê
"Suspending BitLocker functionality" on page 111
Ê
"Shutting down the server" on page 58
Ê
"Disconnecting the power cord" on page 59
Ê
"Getting access to the component" on page 61
Ê
"Removing the system air duct" on page 91
Ê
"Removing the system fan holder" on page 93
7.7.1.2 Installing the SAS expander board

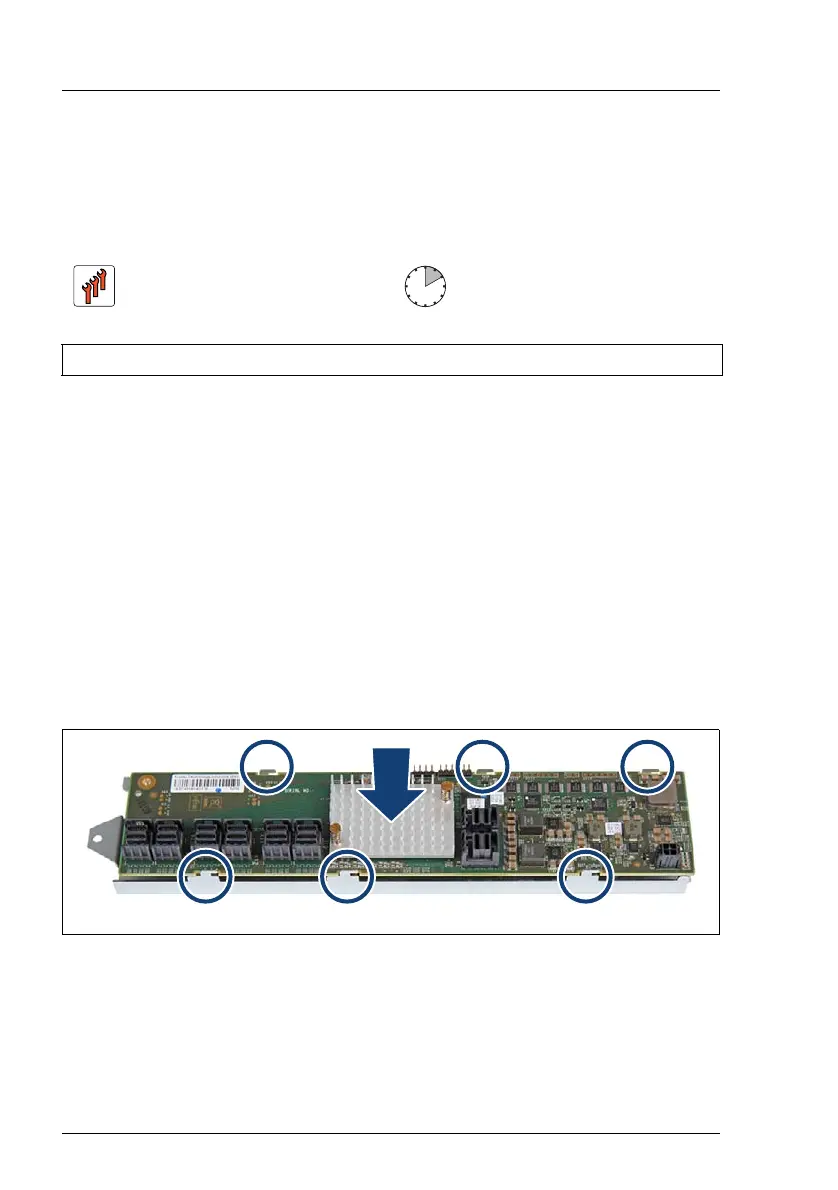

Figure 186: Positioning the SAS expander board
Ê
Position the SAS expander board on the expander holder. Notice the
recesses and hooks (see circles).
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools:
Phillips PH2 / (+) No. 2 screw driver
