TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
387
11.5.3 Removing heat sinks

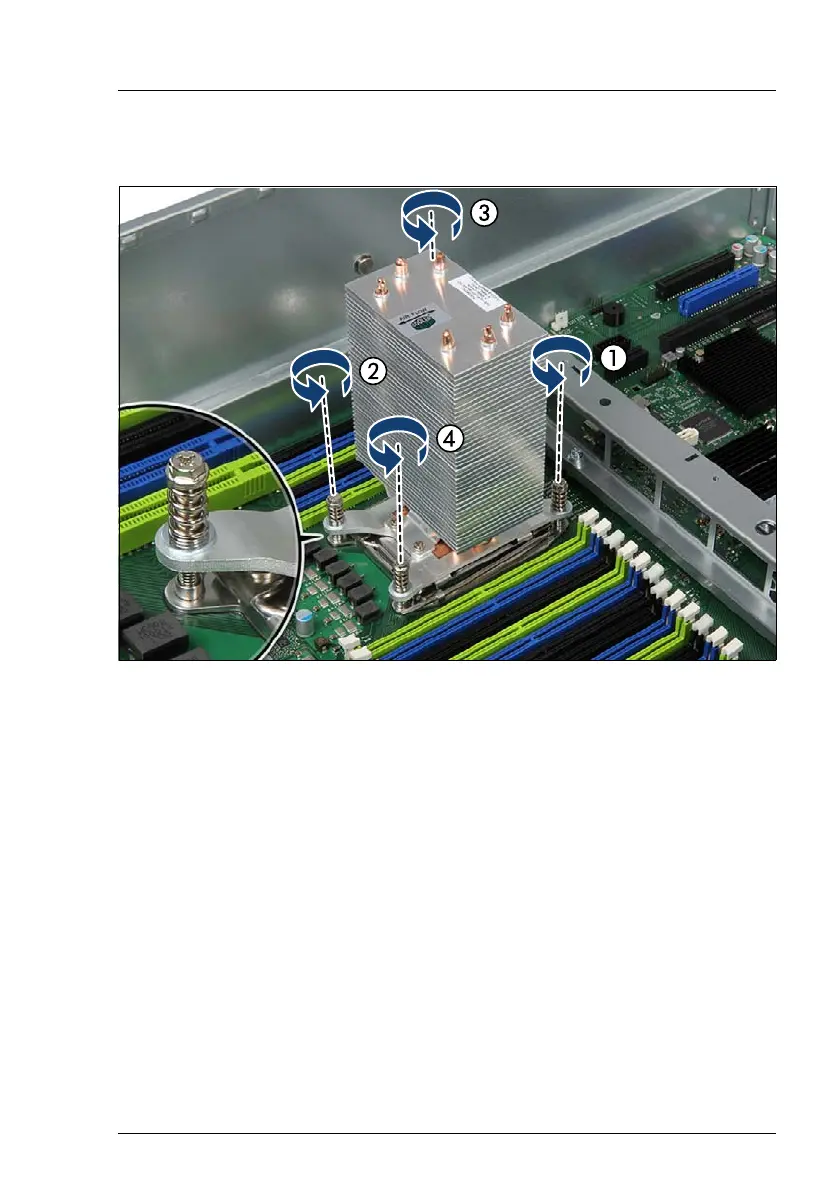

Figure 281: Removing the heat sink
Ê
Loosen the four captive screws on the heat sink in a crossover pattern (1-4).
Ê
Carefully turn the heat sink back and forth to detach it from the CPU.
I
This may be necessary due to the adhesive quality of the thermal
paste located between the heat sink and CPU.
V CAUTION!
Pay special attention not to damage any system board components
surrounding the CPU socket.
Ê
Lift the heat sink out of the chassis.
Ê
Thoroughly clean residual thermal paste from the surface of the heat sink
and the CPU using a lint-free cloth.
