TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
453
System board and components
14.2.1.1 Preliminary steps
Ê
"Locating the defective server" on page 55
Ê
"Shutting down the server" on page 58
Ê
"Disconnecting the power cord" on page 59
Ê
"Getting access to the component" on page 61
Ê
"Removing the system air duct" on page 91
14.2.1.2 Replacing the defective CMOS battery

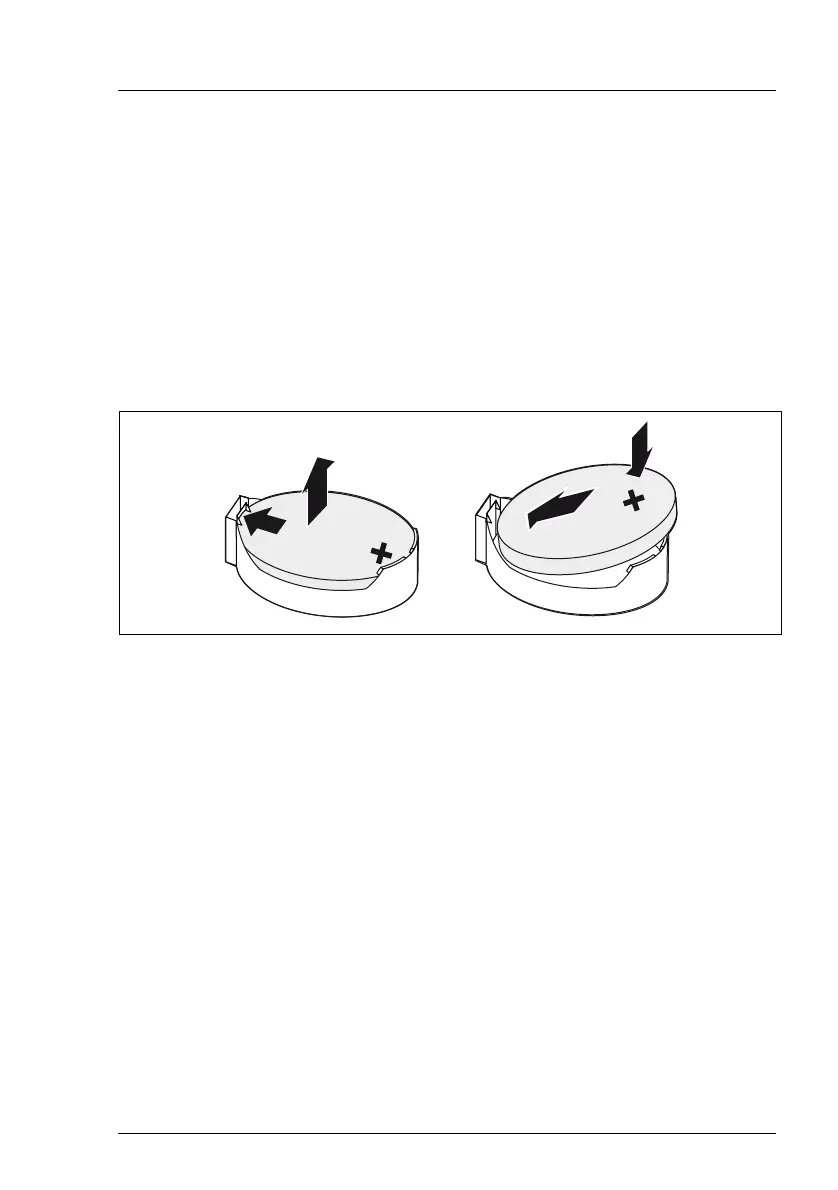

Figure 337: Replacing the CMOS battery
Ê
Press the locking spring into direction of the arrow (1), so that the CMOS
battery jumps out of its socket.
Ê
Remove the CMOS battery (2).
V CAUTION!
Sharp tools such as screw drivers might damage system board
components in case of slipping.
If the CMOS battery cannot be ejected without the help of a tool, it is
recommended to use a tooth pick.
Ê
Insert a new CMOS battery of the same type into the socket (3) and (4).
14.2.1.3 Concluding steps
Ê
Dispose of the CMOS battery in accordance with local regulations
concerning special waste.
Ê
"Installing the system air duct" on page 92
