9.4.2.2 Installing a TFM
Notes for variants of TFM
Depending on the RAID controller, different TFM kits are available.

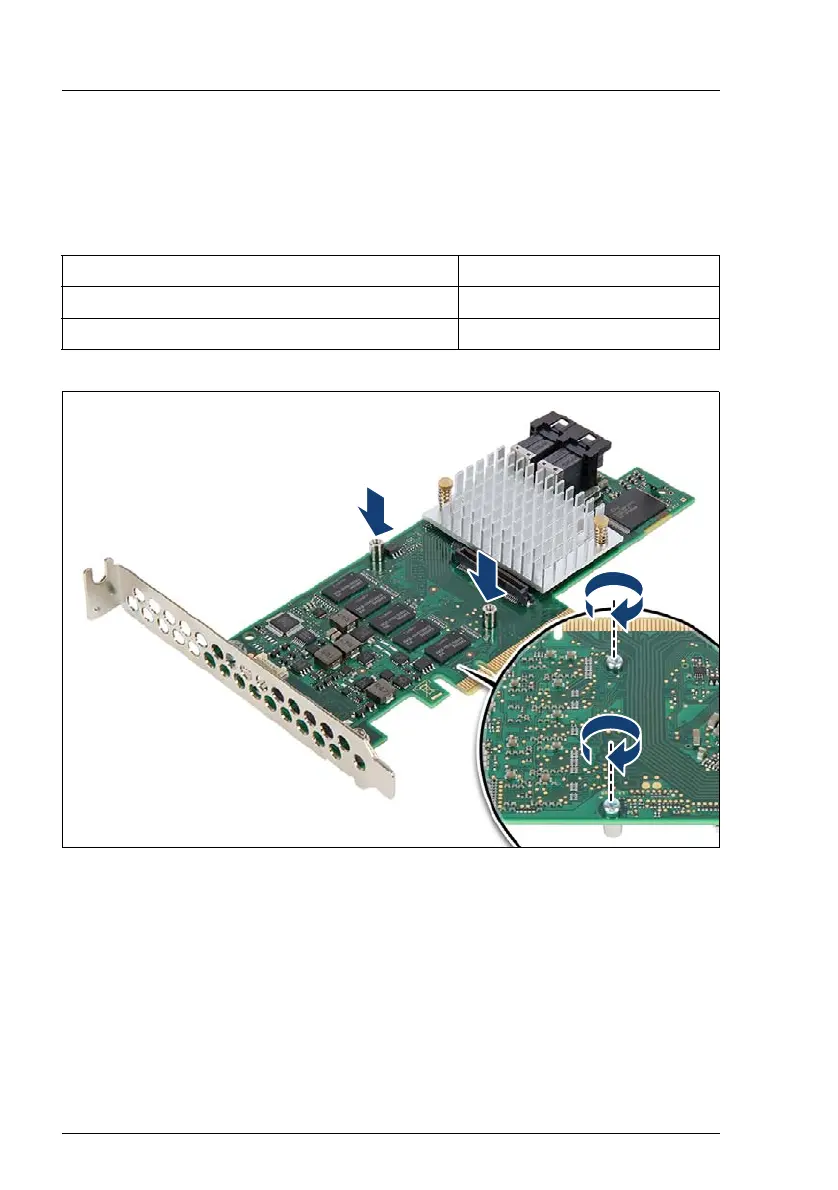

Figure 224: Mounting the TFM (A)
Ê
Fit the two spacer bolts on the SAS RAID controller and secure each with a
screw from the TFM kit.
RAID controller TFM kit
D3216 PRAID EP400i (S26361-D3216-Axx) TFM 4G (LSZ:03-25444-05)
D3216 PRAID EP420i (S26361-D3216-Bxx) TFM 8G (LSZ:03-25444-01)
