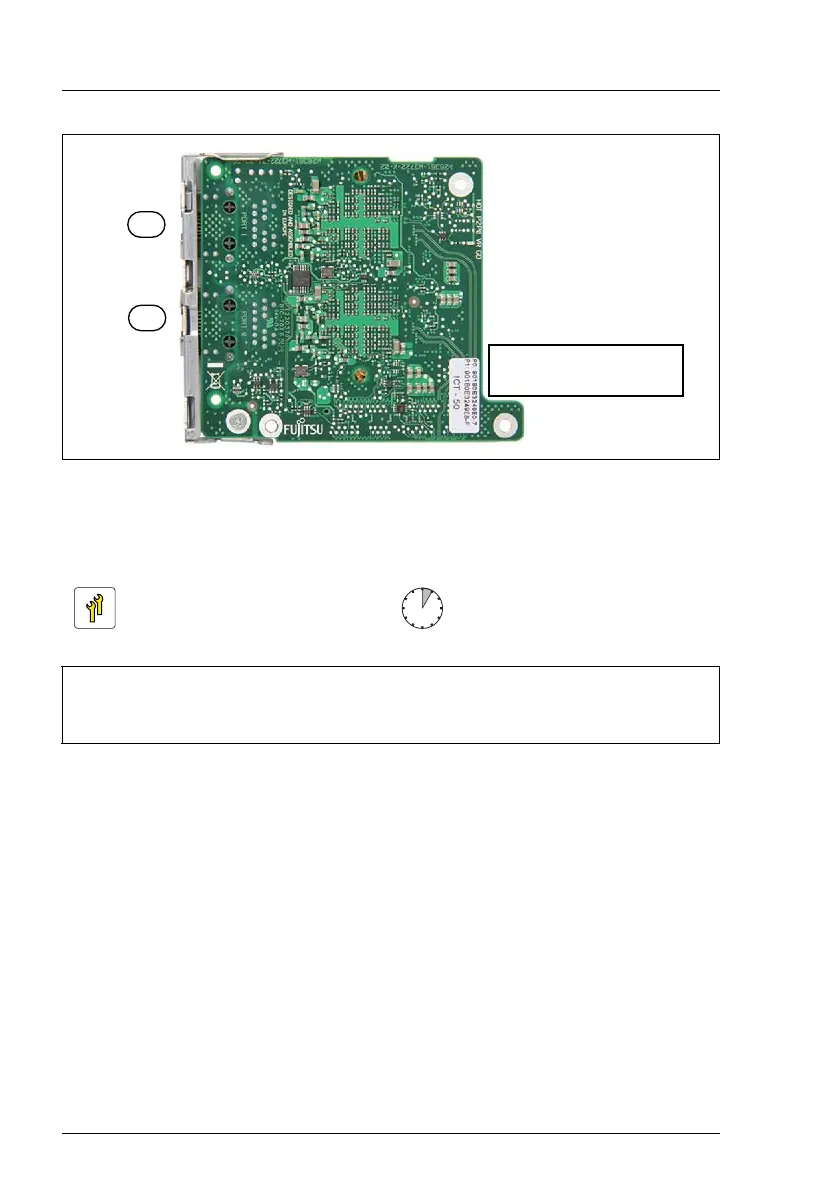

Figure 244: MAC label D3275 (alternative D3285)
9.5.2 Installing the DynamicLoM module
9.5.2.1 Preliminary steps
Ê
"Disabling SVOM boot watchdog functionality" on page 112
Ê
"Shutting down the server" on page 58
Ê
"Disconnecting the power cord" on page 59
Ê
"Getting access to the component" on page 61
Ê
If applicable, remove the riser module 1 as described in section "Removing
a riser module" on page 98.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool:
– Phillips PH0 / (+) No. 0 screw driver
– hexagon screw driver 5 mm
– Phillips PH2 / (+) No. 2 screw driver (for system board screw)
P0:xxxx xxxx xxx0 - 7
P1:xxxx xxxx xxx8 - F
