2.3 Tools you need at hand
When preparing the maintenance task, ensure that all required tools are
available according to the overview below. You will find a list of required tools at
the beginning of each procedure.

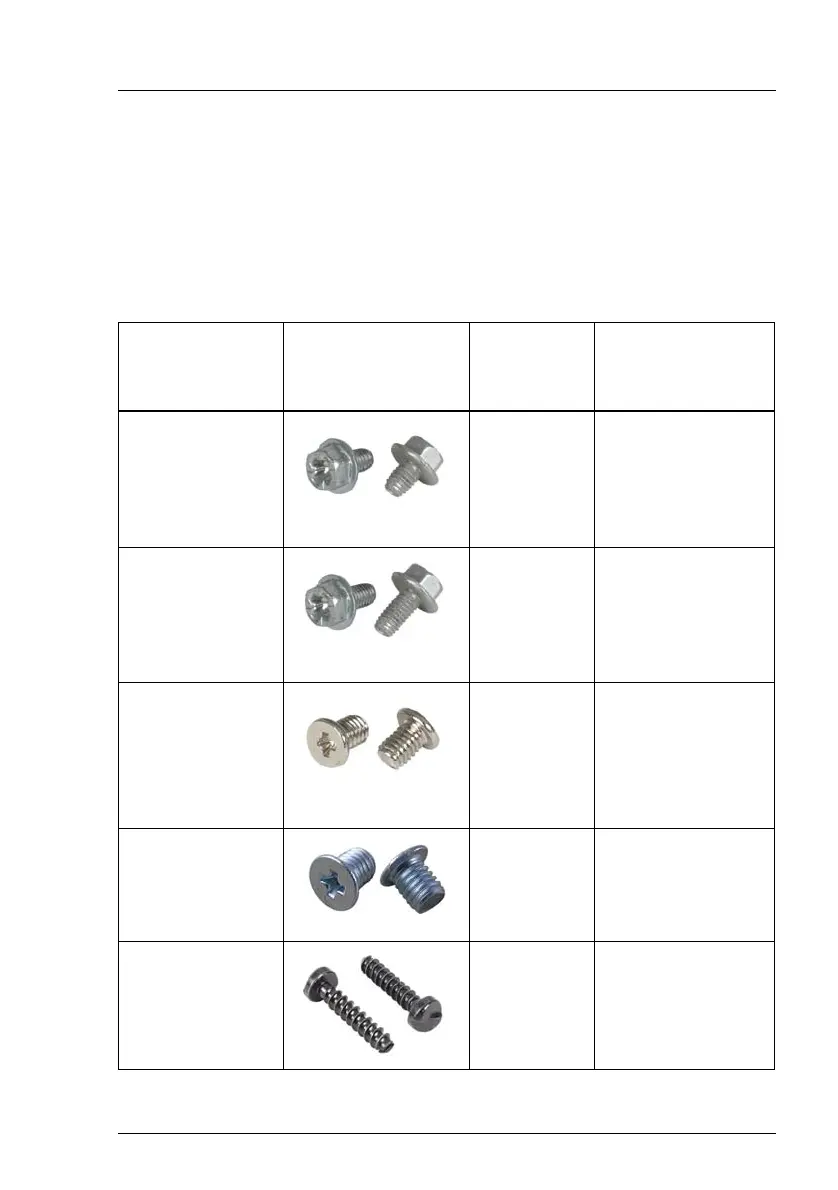

List of used screws for global market
Screw driver /
Bit insert
Torque
Screw Usage Type
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
0.6 Nm
Backup
drives,
optical disk
drives,
chassis
M3 x 4.5 mm
(silver)
C26192-Y10-C67
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
0.6 Nm
System
board
M3 x 6 mm
(silver)
C26192-Y10-C68
Phillips
PH0 / (+) No. 0
0.4 Nm
2.5-inch
HDDs/SSDs,
Front VGA
board,
DynamicLoM
module
M3 x 3.5 mm
(silver)
C26192-Y10-C102
Phillips
PH1 / (+) No. 1
0.6 Nm
3.5-inch
HDDs
UNC
6-32 x 5 mm
(black)
C26192-Y10-C200
TPM bit insert
0.6 Nm
TPM
REM 3 x 15 mm
(black)
C26192-Y10-C176
Table 2: List of used screws (global market)
