TX2560 M2 / RX2560 M2
Upgrade and Maintenance Manual
73
Basic hardware procedures
4.4.2.5
Removing
the front cover

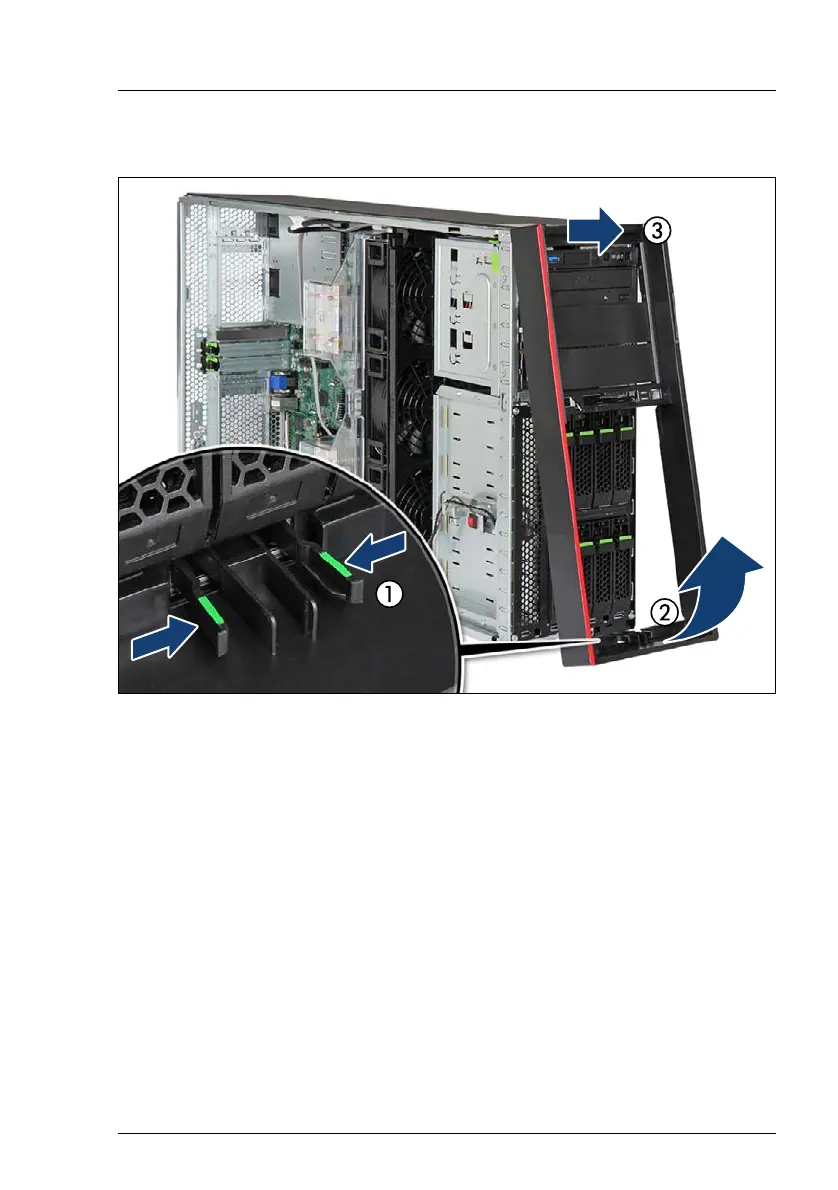

Figure 20: Removing the front cover (tower server)
Ê
Pinch the locking clips to disengage the front cover (1, see close-up) while
slightly pulling out.
Ê
Carefully fold out the bottom end of the front cover (2).
Ê
Unhook and remove the front cover (3).
