Hard disk drive (HDD) / solid state drive (SSD)
7.6.1.4 Installing a non-hot-plug HDD/SSD

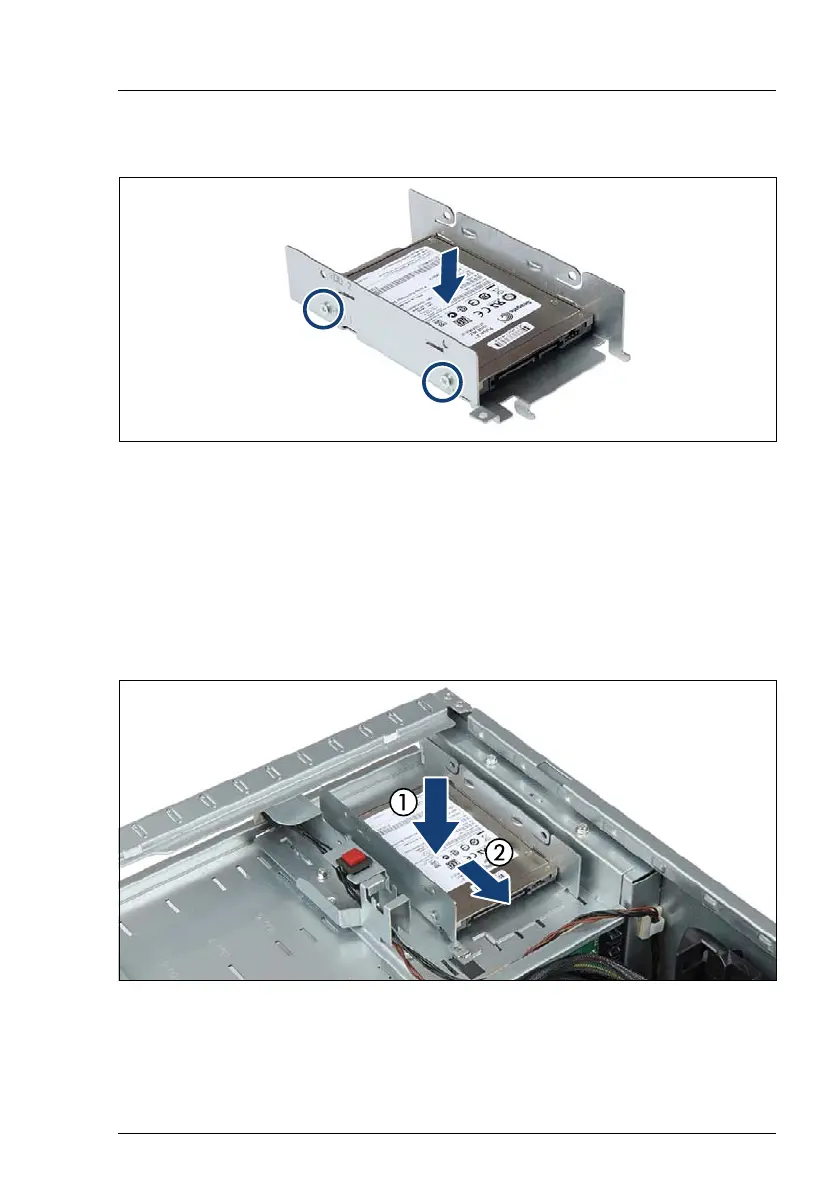

Figure 180: Installing the non-hot-plug HDD/SSD
Ê Place the non-hot-plug HDD/SSD 1 in the non-hot-plug cage.
Ê Fasten the non-hot-plug HDD/SSD 1 with the four screws M3 x 3.5 mm (two
screws on each side, circles show one side).
Ê If applicable, install the non-hot-plug HDD/SSD 2 in the same way.
7.6.1.5 Installing the non-hot-plug cage
Figure 181: Installing the non-hot-plug cage (A)
Ê Place the non-hot-plug cage onto the top cover (1).
Ê Slide the non-hot-plug cage in the direction of the arrow (2).
